1. Introduction
1.1 Miniature 6-axis Force Torque Sensor
1.2 Key features
•
Miniature 6-axis force/torque sensor
•
All-in-one sensor (No additional amplifier)
•
Digital output communications (CAN, etc)
•
Easy installation and data collection
•
Grippers, robot hands, medical, and VR/haptics
1.3 Specs.
Index | AFT20-D15 | AFT50-D15 | Unit |
Operating voltage | 5 | 5 | VDC |
Max. safe excitation voltage | 10 | 10 | VDC |
Nominal force range (F_XYZN) | 20 | 50 | N |
Nominal torque range (M_XYZN) | 100 | 250 | Nmm |
Limit force (F_XYZL) | 25 | 75 | N |
Limit torque (M_XYZL) | 150 | 350 | Nmm |
Dimensions | D15 x H10.5 | D15 x H10.5 | mm |
Weight | 3.2 | 3.4 | g |
Temperature | 10-50 | 10-50 | ℃ |
Sample rate | 100 | 100 | Hz |
Interfaces | CAN | CAN | 1,000Kbps |
Connector | For User:
CAN_H / CAN_L / VCC / GND | For User:
CAN_H / CAN_L / VCC / GND | FPC: 0.5 pitch, 8pin
Length: 50, 100, 200 mm |
1.4 Flyer
2. Installation Guide
2.1 Components
•
AFT-MINI x 1 EA (FPC cable integrated, selected when ordering)
•
FPC-DIP conversion board (for testing)
2.2 Mounting
•
Must be fastened with M2 bolt 1kgfcm (0.1Nm)
•
Performance cannot be guaranteed and A/S is not possible when disassembling internal bolts
•
Be careful of cable cuts and excessive pulling
If the tightening torque is not observed, data may not be output properly.
•
Force torque coordinate system
2.3 Connection
•
Cable pinout
◦
For user: CAN_H / CAN_L / VCC / GND (4pin)
◦
60 - 120 Ohm termination resistor should be connected between CAN_H and CAN_L
◦
Length: 50, 100, 200 mm (order option)
•
Conversion board connection example
◦
FPC 0.5mm pitch to DIP converting board
◦
For easy test set-up
◦
60-120 Ohm termination resistance required (between CAN_H and CAN_L)
◦
For system integration, it is recommended to have a connector built into the board.
(Connector information: FFC/FPC connector 8P ZIF, R/A, SMT ONE TOUCH FLIP LOCK)
•
Example of CAN_H, CAN_L line and terminating resistance configuration for multiple connections
(individual ID setting required- factory setting)
•

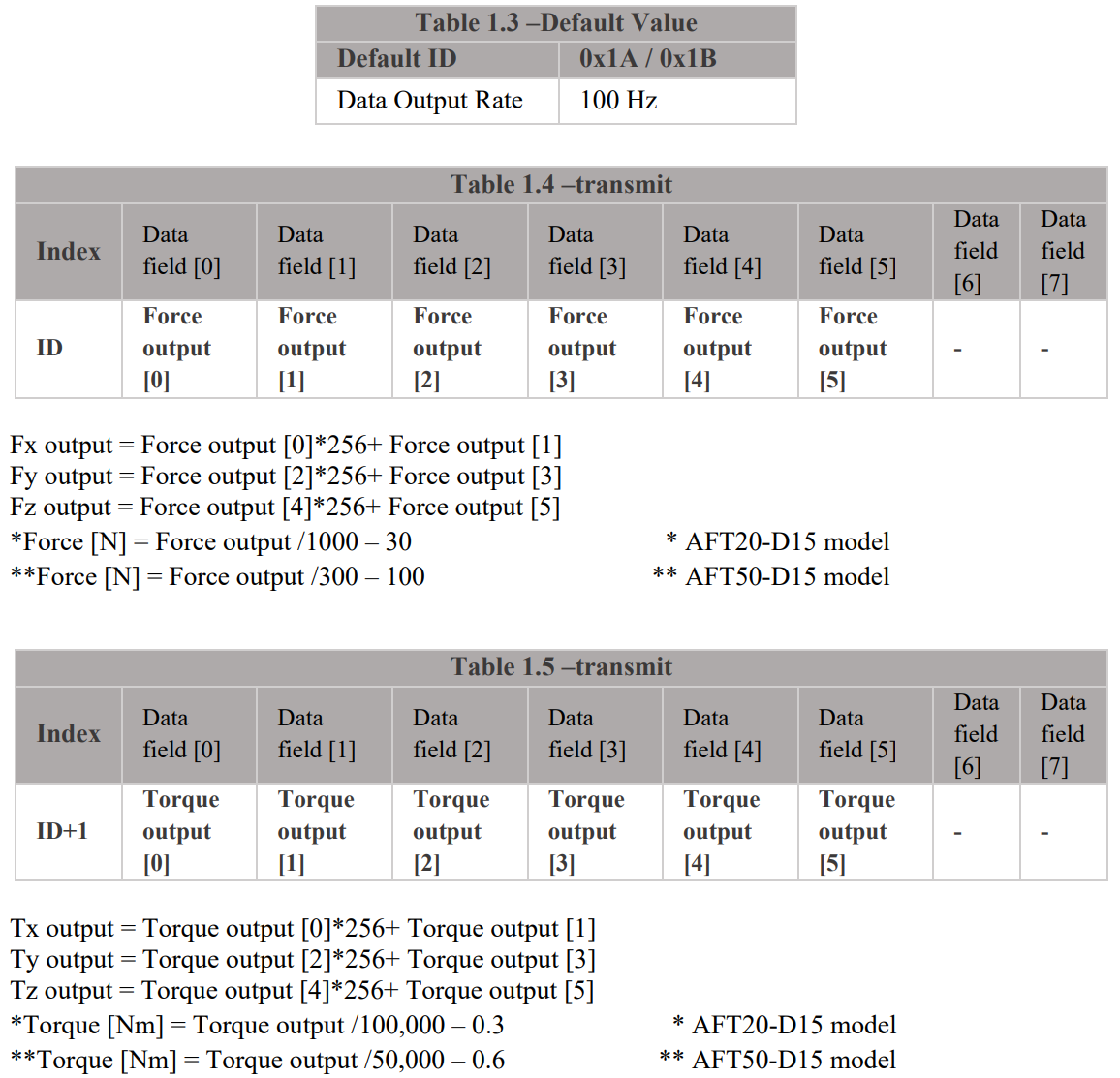

Output data format
3. Software
•
USB-to-CAN device driver installation
◦
You can use other CAN support boards, but use IXXAT's converter to use the provided sample program.
USB-to-CAN V2 (ixxat.com), version used in the manual: 1.01.0281.11001
Downloads and Documentation for Ixxat Products, VCI V4 - Windows 11, 10, 8, 7 [Driver, canAnalyser-Mini, Manuals, LabView and other add-ons]*
*When installing, check VCI V4 and reboot the PC after installation
•
Test cable connection setup
•

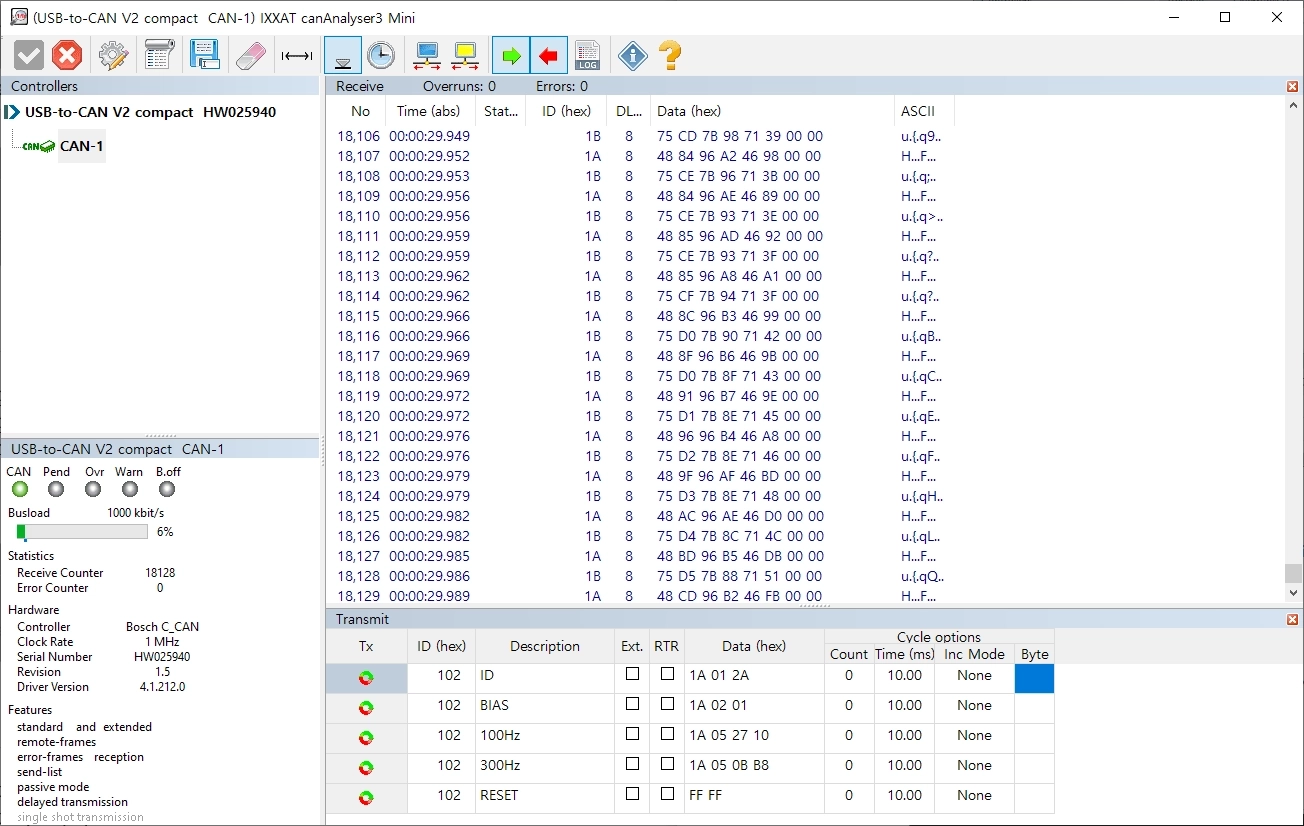

CAN bus program (provided by IXXAT)
◦
CanAnalyzer3 Mini
windows→ IXXAT→ IXXAT CanAnalyzer3 Mini
•
Sample program provided by Aidin Robotics
◦
Download sample program
◦
Install IXXAT CAN VCI V4 and sample_install
◦
After connecting the sensor, run AFT-MINI SAMPLE.exe
•
Pop-up screen
1.
CAN device selection
Select your device. Devices currently connected to the PC are displayed in a list.
Click the applicable device and press the OK button.
※ The sample program was created based on IXXAT's USB-to-CAN converter.
2.
CAN Controller Selection
The device name selected in the previous step will be displayed. Select the controller channel below and press the OK button.
3.
CAN controller initial setup
This is the step to initialize the controller. Check the baudrate and press the OK button.
•
Interface description
① Program run
Run the sample program.
② Graph plot
You can check real-time data of 6-axis force/torque data (Fx, Fy, Fz, Tx, Ty, Tz) in graphs.
③ CAN ID
Set the CAN ID of the connected sensor. If there is more than one ID, enter the lowest ID.
ex) In case of 0x1A(26), 0x1B(27), input 26
④ BIAS
Initialize all 6-axis force/torque data to zero. By eliminating installation and attachment factors, the desired force value can be measured.
⑤ STOP
Exit the program. Press both STOP buttons and the program ends in 3 seconds.
⑥ Collect Data
Saves force/torque data logs. Please refer to the explanation regarding data storage on the page below.
⑦ Save Data File Path
Set the path to save force/torque data logs. Please refer to the explanation regarding data storage on the page below.
3.1 Save data log
1.
Save directory settings
Click the folder button to open a pop-up window. Select the file (.txt) in the desired directory and press the OK button to specify it. Check the path indicated in Path.
(If there is no specified file in the relevant path, a file is automatically created)
2.
Collect data
Click the button below Collect Data to start saving. The button lights up when saving.
To end saving, press the button again. Data is stored cumulatively in files, so it is recommended that you specify a new file for each save.
3.
Check data log
You can check the saved force/torque data by opening the files in that directory. Data is stored in each column in the following order: Fx, Fy, Fz, Tx, Ty, and Tz.
