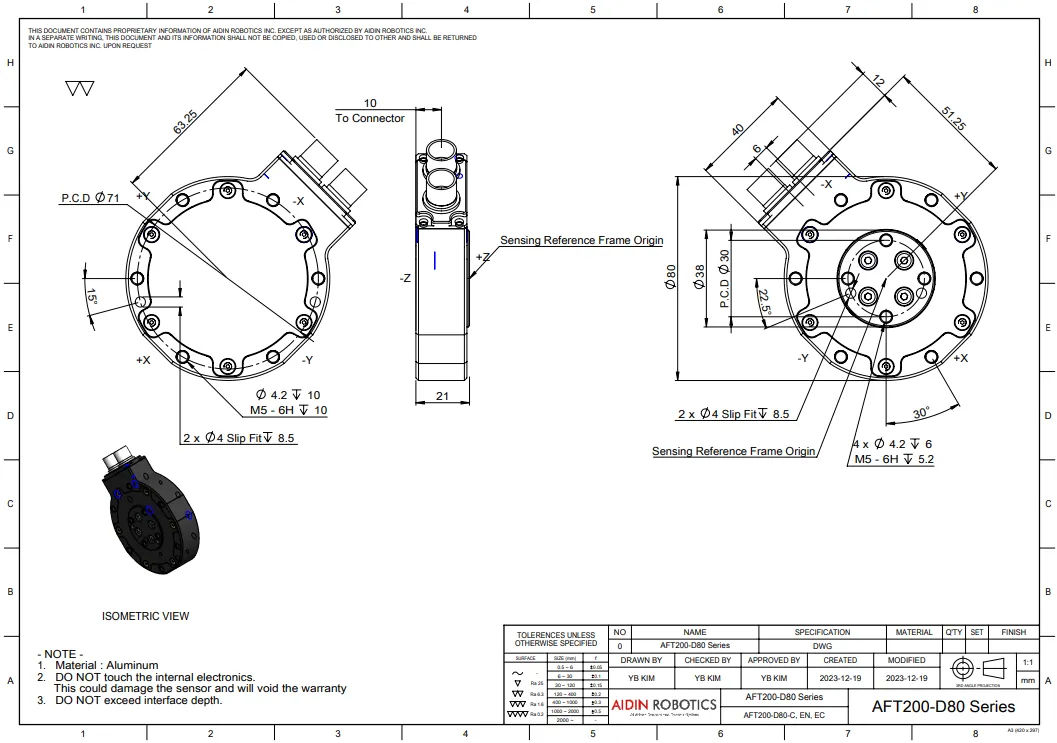

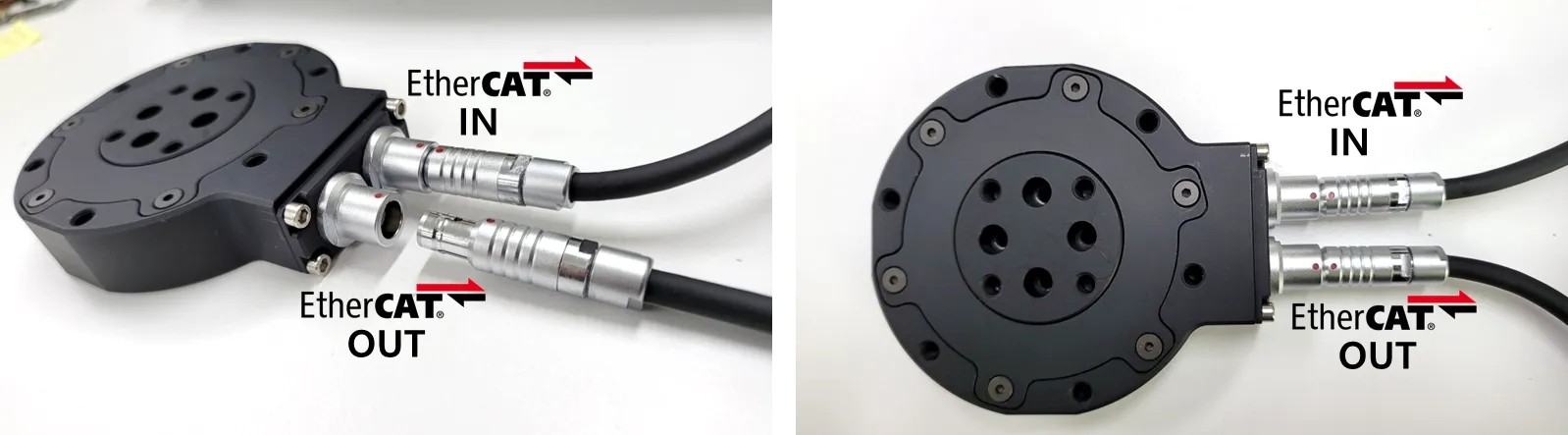

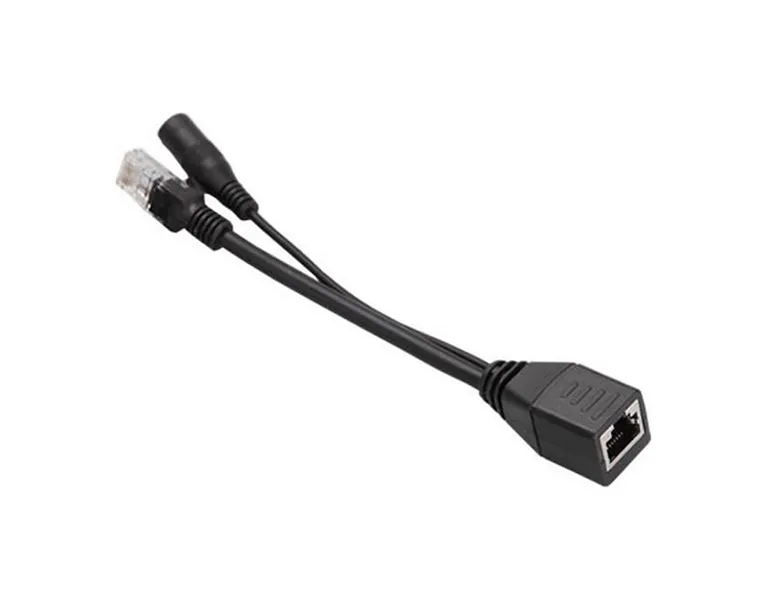

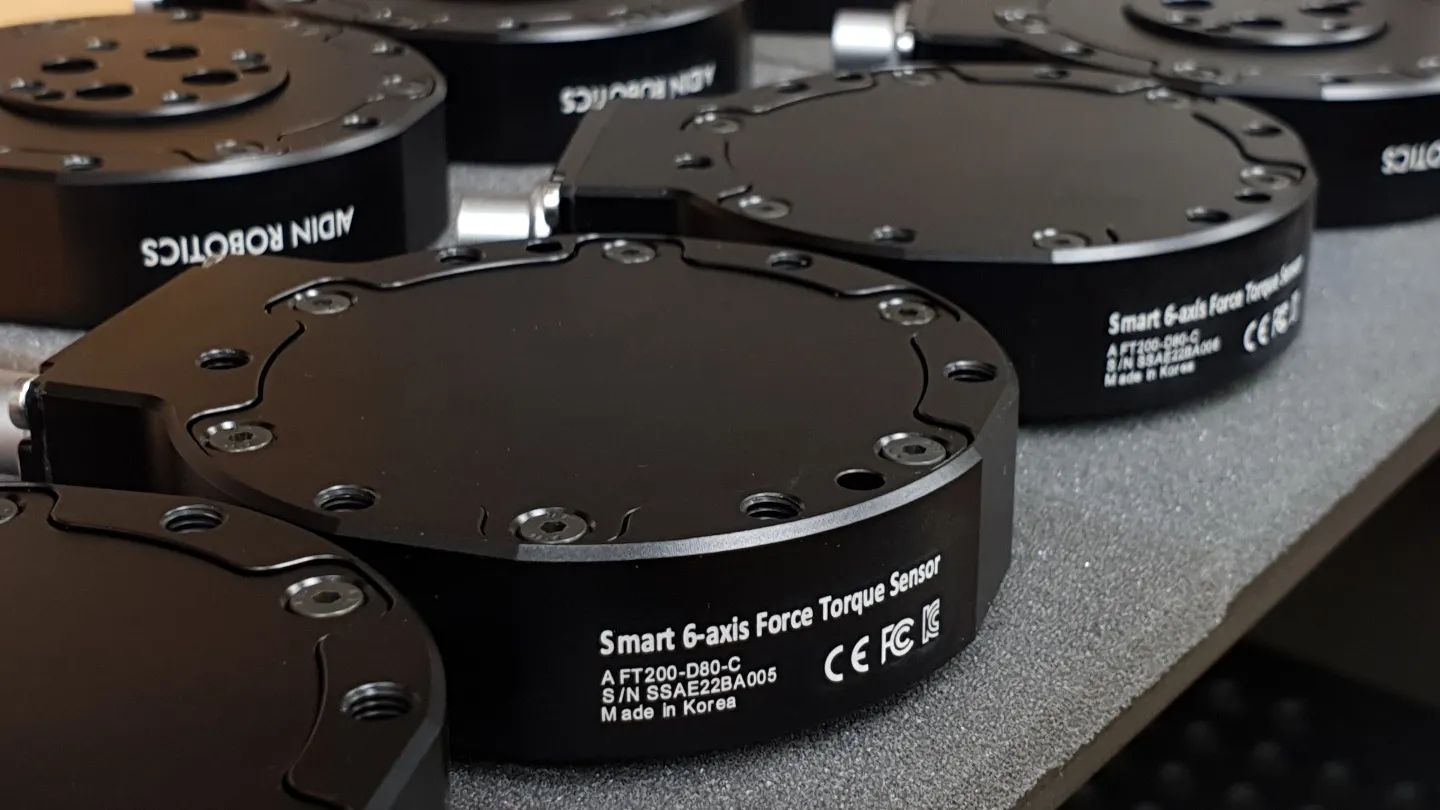

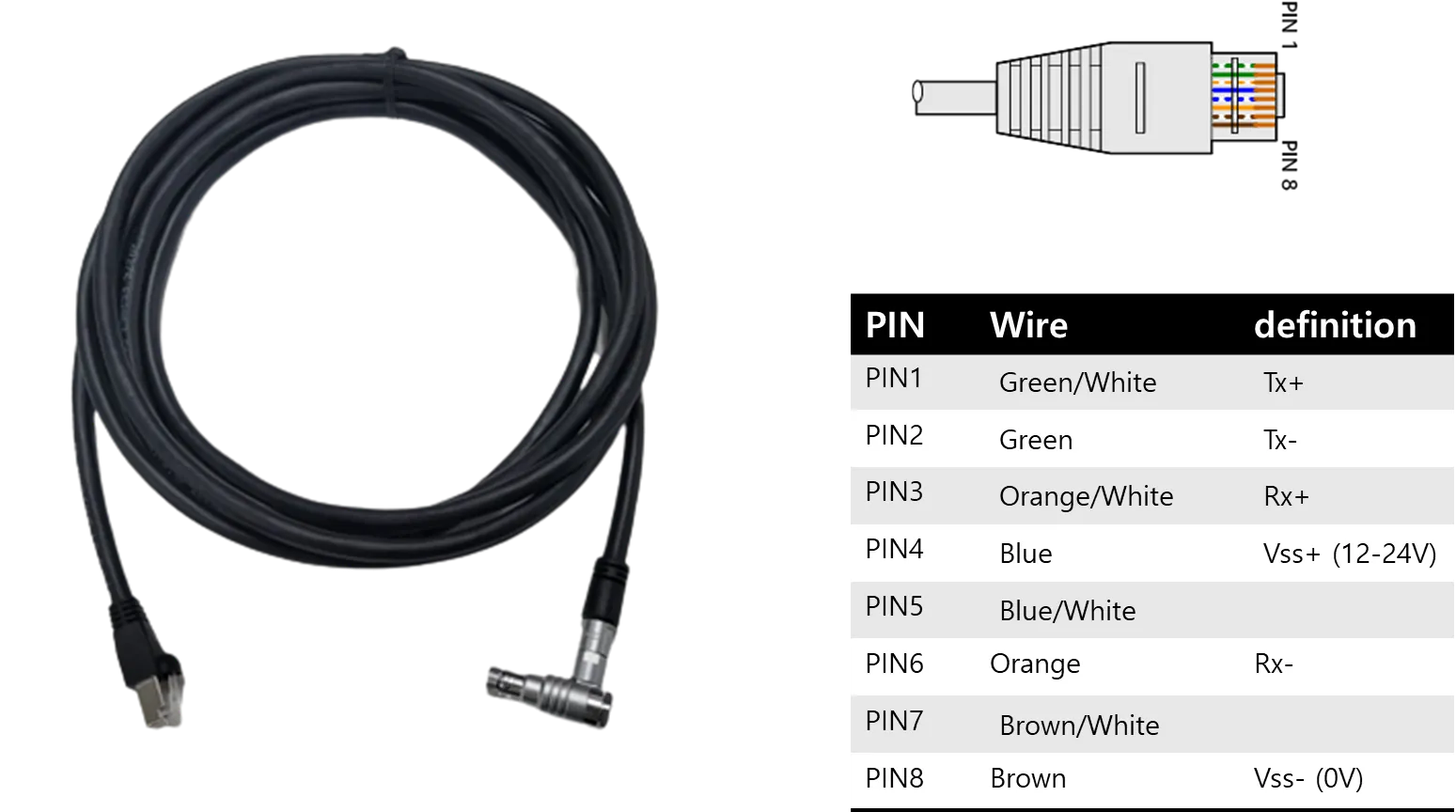

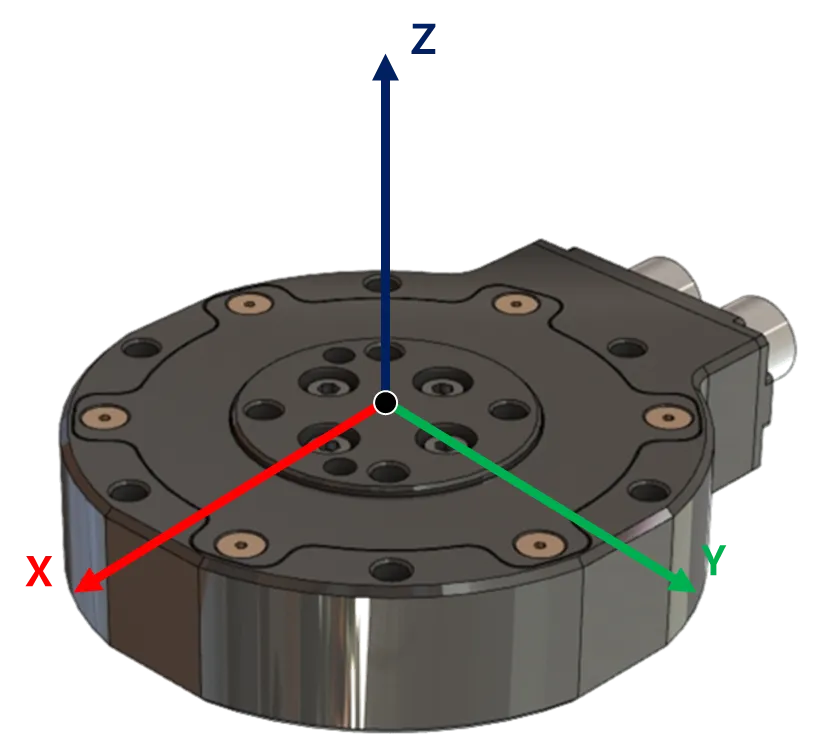

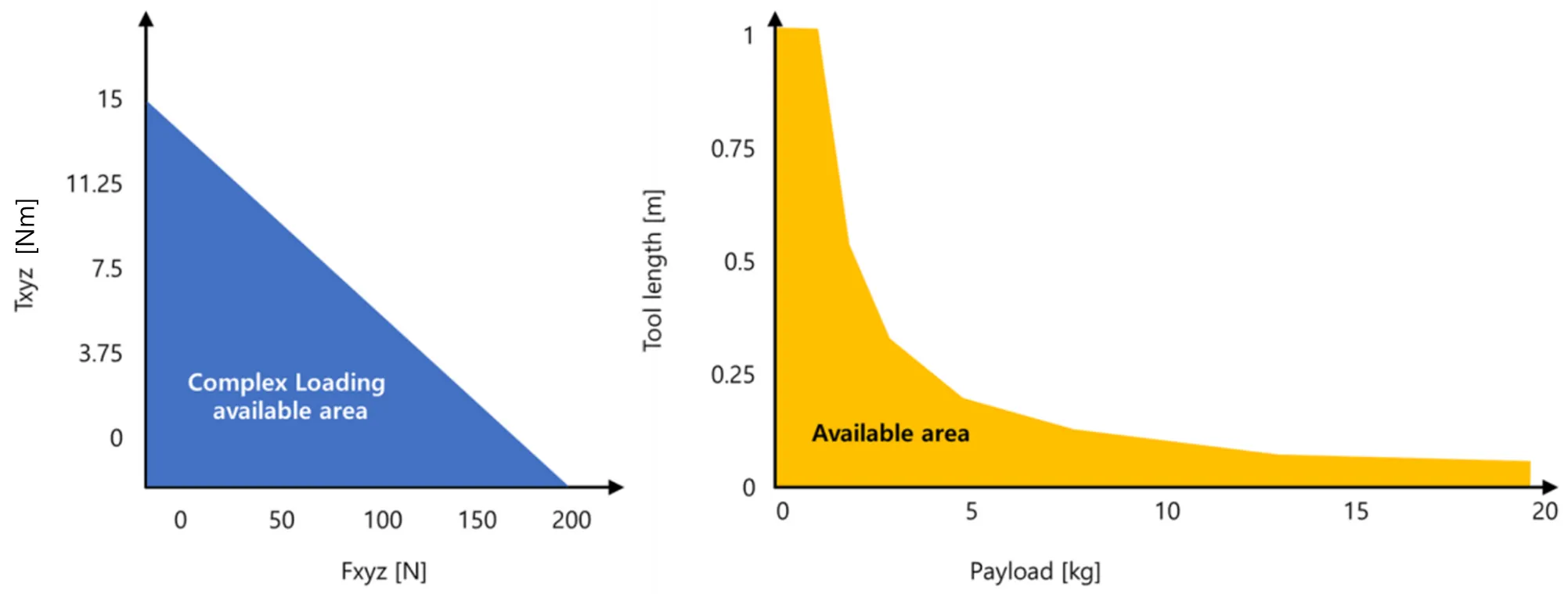

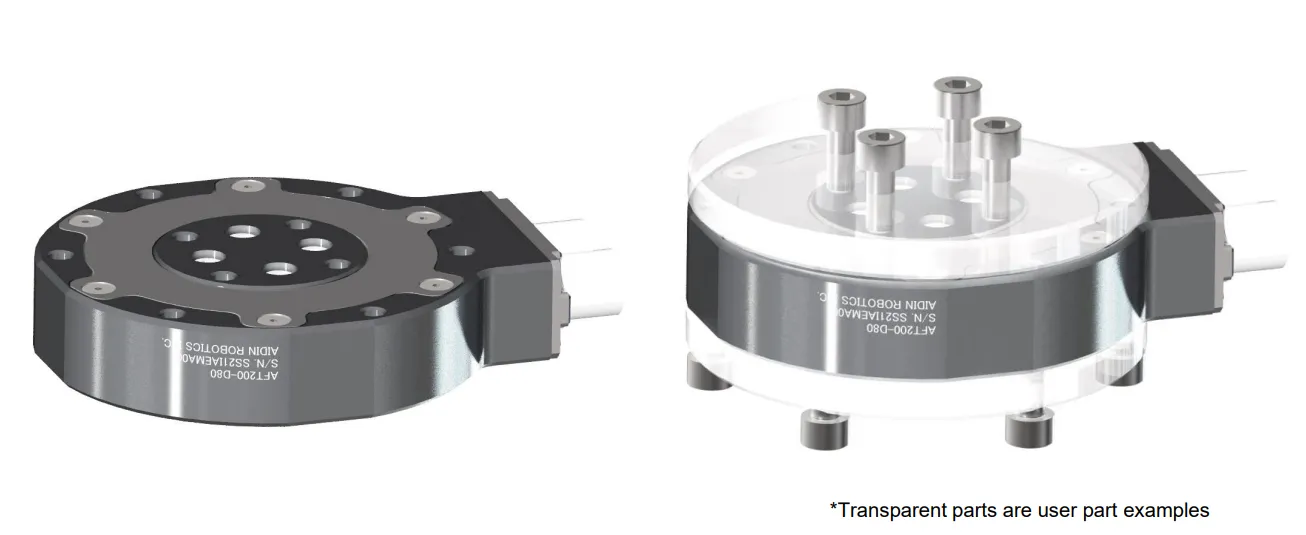

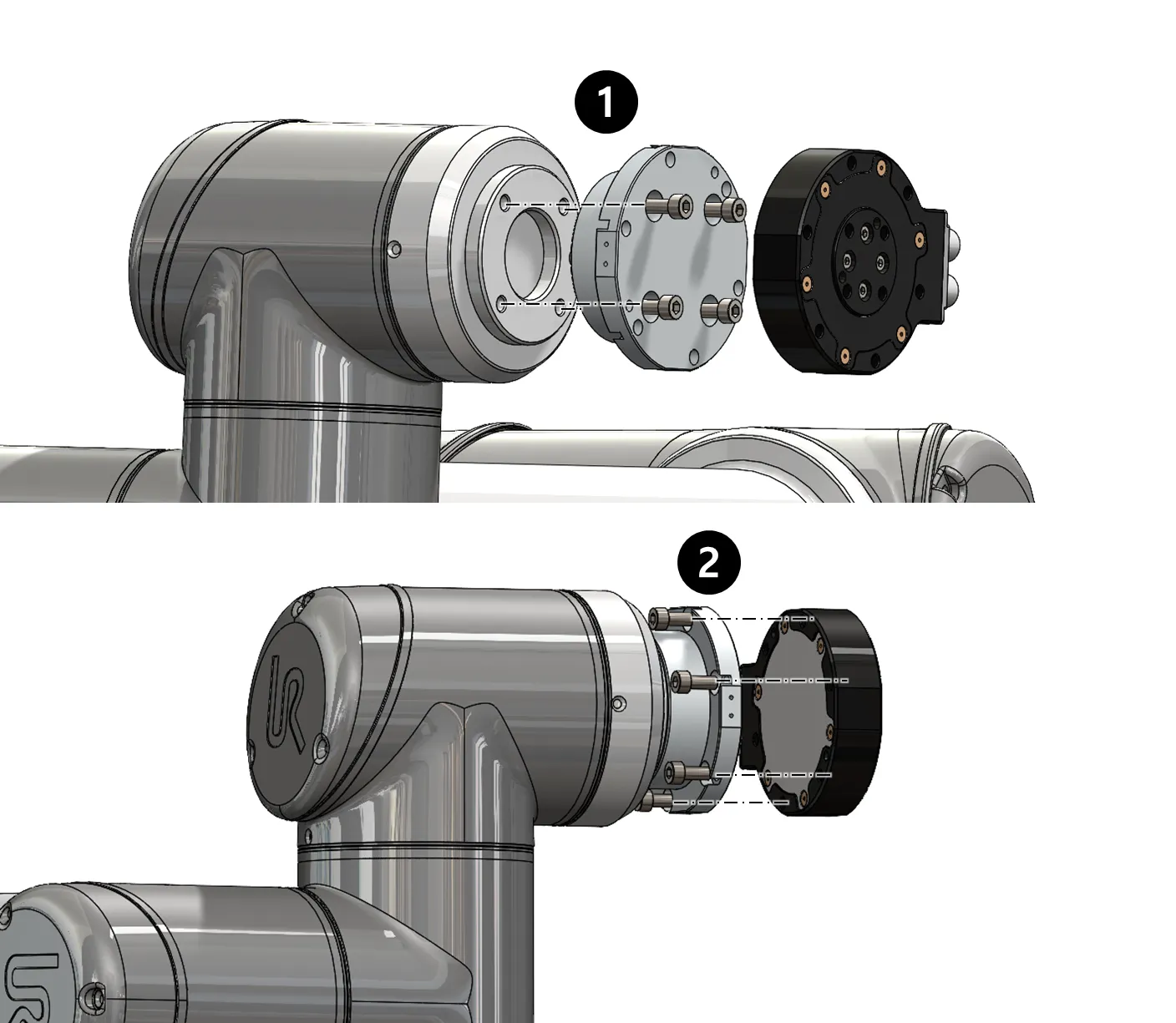

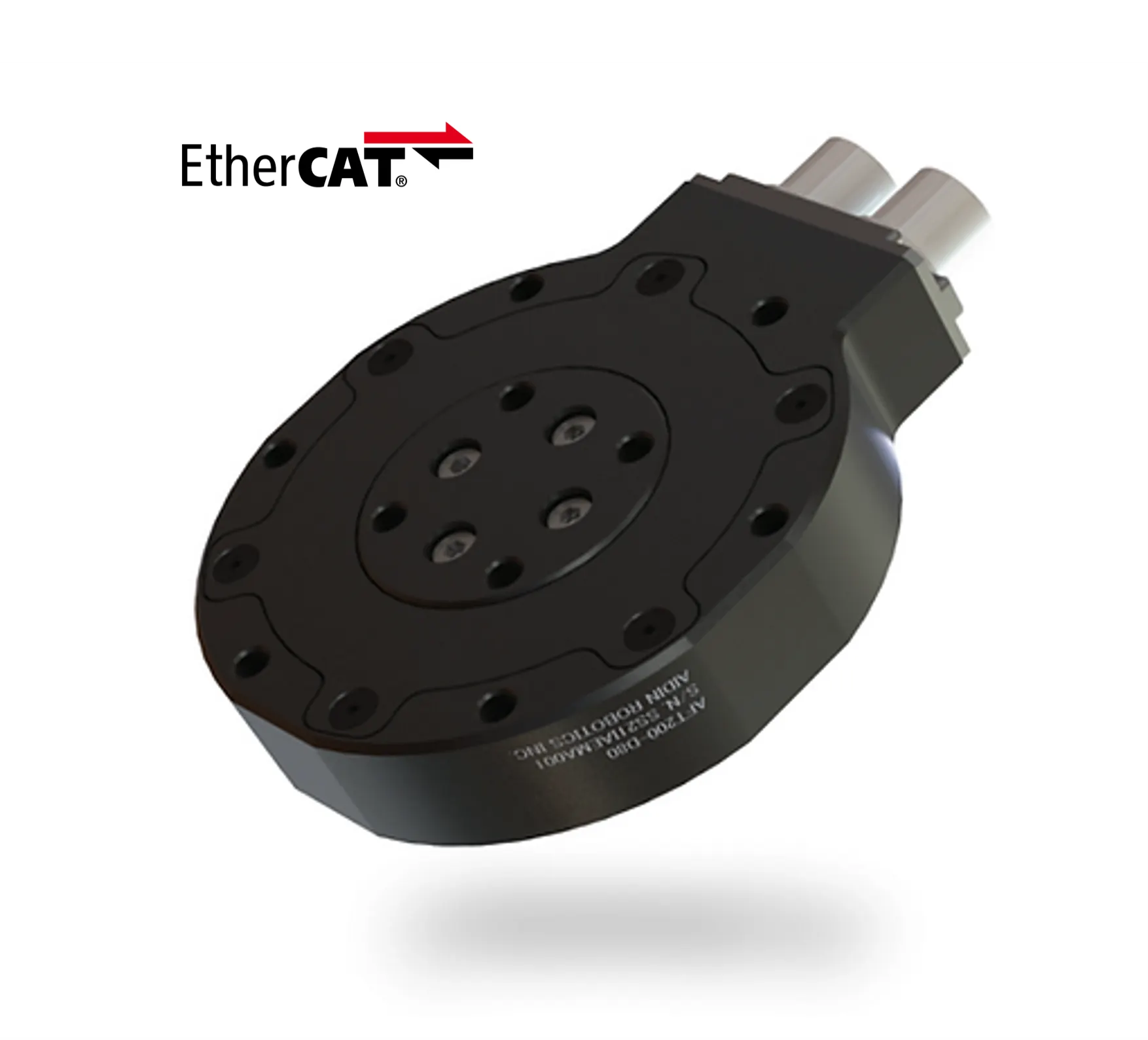

6축 힘/토크 센서 - EtherCAT

git clone https://github.com/OpenEtherCATsociety/SOEM

/** \file * \brief Example code for Simple Open EtherCAT master * * Usage : simple_test [ifname1] * ifname is NIC interface, f.e. eth0 * * This is a minimal test. * * (c)Arthur Ketels 2010 - 2011 */ #include <stdio.h> #include <string.h> #include <inttypes.h> #include "ethercat.h" #define EC_TIMEOUTMON 500 char IOmap[4096]; OSAL_THREAD_HANDLE thread1; int expectedWKC; boolean needlf; volatile int wkc; boolean inOP; uint8 currentgroup = 0; boolean forceByteAlignment = FALSE; void simpletest(char *ifname) { int i, j, oloop, iloop, chk; needlf = FALSE; inOP = FALSE; printf("Starting simple test\n"); /* initialise SOEM, bind socket to ifname */ if (ec_init(ifname)) { printf("ec_init on %s succeeded.\n",ifname); /* find and auto-config slaves */ if ( ec_config_init(FALSE) > 0 ) { printf("%d slaves found and configured.\n",ec_slavecount); if (forceByteAlignment) { ec_config_map_aligned(&IOmap); } else { ec_config_map(&IOmap); } ec_configdc(); printf("Slaves mapped, state to SAFE_OP.\n"); /* wait for all slaves to reach SAFE_OP state */ ec_statecheck(0, EC_STATE_SAFE_OP, EC_TIMEOUTSTATE * 4); oloop = ec_slave[0].Obytes; if ((oloop == 0) && (ec_slave[0].Obits > 0)) oloop = 1; if (oloop > 8) oloop = 8; iloop = ec_slave[0].Ibytes; if ((iloop == 0) && (ec_slave[0].Ibits > 0)) iloop = 1; if (iloop > 8) iloop = 8; printf("segments : %d : %d %d %d %d\n",ec_group[0].nsegments ,ec_group[0].IOsegment[0],ec_group[0].IOsegment[1],ec_group[0].IOsegment[2],ec_group[0].IOsegment[3]); printf("Request operational state for all slaves\n"); expectedWKC = (ec_group[0].outputsWKC * 2) + ec_group[0].inputsWKC; printf("Calculated workcounter %d\n", expectedWKC); ec_slave[0].state = EC_STATE_OPERATIONAL; /* send one valid process data to make outputs in slaves happy*/ ec_send_processdata(); ec_receive_processdata(EC_TIMEOUTRET); /* request OP state for all slaves */ ec_writestate(0); chk = 200; /* wait for all slaves to reach OP state */ do { ec_send_processdata(); ec_receive_processdata(EC_TIMEOUTRET); ec_statecheck(0, EC_STATE_OPERATIONAL, 50000); } while (chk-- && (ec_slave[0].state != EC_STATE_OPERATIONAL)); if (ec_slave[0].state == EC_STATE_OPERATIONAL ) { printf("Operational state reached for all slaves.\n"); inOP = TRUE; /* cyclic loop */ for(i = 1; i <= 10000; i++) { ec_send_processdata(); wkc = ec_receive_processdata(EC_TIMEOUTRET); if(wkc >= expectedWKC) { printf("Processdata cycle %4d, WKC %d , O:", i, wkc); for(j = 0 ; j < oloop; j++) { printf(" %2.2x", *(ec_slave[0].outputs + j)); } printf(" I:"); //Test int Fx= *(ec_slave[0].inputs+1)*256+*(ec_slave[0].inputs); int Fy= *(ec_slave[0].inputs+5)*256+*(ec_slave[0].inputs+4); int Fz= *(ec_slave[0].inputs+9)*256+*(ec_slave[0].inputs+8); int Tx= *(ec_slave[0].inputs+13)*256+*(ec_slave[0].inputs+12); int Ty= *(ec_slave[0].inputs+17)*256+*(ec_slave[0].inputs+16); int Tz= *(ec_slave[0].inputs+21)*256+*(ec_slave[0].inputs+20); int Ax= *(ec_slave[0].inputs+25)*256+*(ec_slave[0].inputs+24); int Ay= *(ec_slave[0].inputs+29)*256+*(ec_slave[0].inputs+28); int Az= *(ec_slave[0].inputs+33)*256+*(ec_slave[0].inputs+32); printf(" Fx: %d, Fy: %d,Fz: %d,Tx: %d,Ty: %d,Tz: %d,Ax: %d,Ay: %d,Az: %d, ", Fx, Fy,Fz,Tx,Ty,Tz,Ax,Ay,Az); printf(" T:%"PRId64"\n",ec_DCtime); needlf = TRUE; } osal_usleep(5000); } inOP = FALSE; } else { printf("Not all slaves reached operational state.\n"); ec_readstate(); for(i = 1; i<=ec_slavecount ; i++) { if(ec_slave[i].state != EC_STATE_OPERATIONAL) { printf("Slave %d State=0x%2.2x StatusCode=0x%4.4x : %s\n", i, ec_slave[i].state, ec_slave[i].ALstatuscode, ec_ALstatuscode2string(ec_slave[i].ALstatuscode)); } } } printf("\nRequest init state for all slaves\n"); ec_slave[0].state = EC_STATE_INIT; /* request INIT state for all slaves */ ec_writestate(0); } else { printf("No slaves found!\n"); } printf("End simple test, close socket\n"); /* stop SOEM, close socket */ ec_close(); } else { printf("No socket connection on %s\nExecute as root\n",ifname); } } OSAL_THREAD_FUNC ecatcheck( void *ptr ) { int slave; (void)ptr; /* Not used */ while(1) { if( inOP && ((wkc < expectedWKC) || ec_group[currentgroup].docheckstate)) { if (needlf) { needlf = FALSE; printf("\n"); } /* one ore more slaves are not responding */ ec_group[currentgroup].docheckstate = FALSE; ec_readstate(); for (slave = 1; slave <= ec_slavecount; slave++) { if ((ec_slave[slave].group == currentgroup) && (ec_slave[slave].state != EC_STATE_OPERATIONAL)) { ec_group[currentgroup].docheckstate = TRUE; if (ec_slave[slave].state == (EC_STATE_SAFE_OP + EC_STATE_ERROR)) { printf("ERROR : slave %d is in SAFE_OP + ERROR, attempting ack.\n", slave); ec_slave[slave].state = (EC_STATE_SAFE_OP + EC_STATE_ACK); ec_writestate(slave); } else if(ec_slave[slave].state == EC_STATE_SAFE_OP) { printf("WARNING : slave %d is in SAFE_OP, change to OPERATIONAL.\n", slave); ec_slave[slave].state = EC_STATE_OPERATIONAL; ec_writestate(slave); } else if(ec_slave[slave].state > EC_STATE_NONE) { if (ec_reconfig_slave(slave, EC_TIMEOUTMON)) { ec_slave[slave].islost = FALSE; printf("MESSAGE : slave %d reconfigured\n",slave); } } else if(!ec_slave[slave].islost) { /* re-check state */ ec_statecheck(slave, EC_STATE_OPERATIONAL, EC_TIMEOUTRET); if (ec_slave[slave].state == EC_STATE_NONE) { ec_slave[slave].islost = TRUE; printf("ERROR : slave %d lost\n",slave); } } } if (ec_slave[slave].islost) { if(ec_slave[slave].state == EC_STATE_NONE) { if (ec_recover_slave(slave, EC_TIMEOUTMON)) { ec_slave[slave].islost = FALSE; printf("MESSAGE : slave %d recovered\n",slave); } } else { ec_slave[slave].islost = FALSE; printf("MESSAGE : slave %d found\n",slave); } } } if(!ec_group[currentgroup].docheckstate) printf("OK : all slaves resumed OPERATIONAL.\n"); } osal_usleep(10000); } } int main(int argc, char *argv[]) { printf("SOEM (Simple Open EtherCAT Master)\nSimple test\n"); if (argc > 1) { /* create thread to handle slave error handling in OP */ // pthread_create( &thread1, NULL, (void *) &ecatcheck, (void*) &ctime); osal_thread_create(&thread1, 128000, &ecatcheck, (void*) &ctime); /* start cyclic part */ simpletest(argv[1]); } else { ec_adaptert * adapter = NULL; printf("Usage: simple_test ifname1\nifname = eth0 for example\n"); printf ("\nAvailable adapters:\n"); adapter = ec_find_adapters (); while (adapter != NULL) { printf (" - %s (%s)\n", adapter->name, adapter->desc); adapter = adapter->next; } ec_free_adapters(adapter); } printf("End program\n"); return (0); }

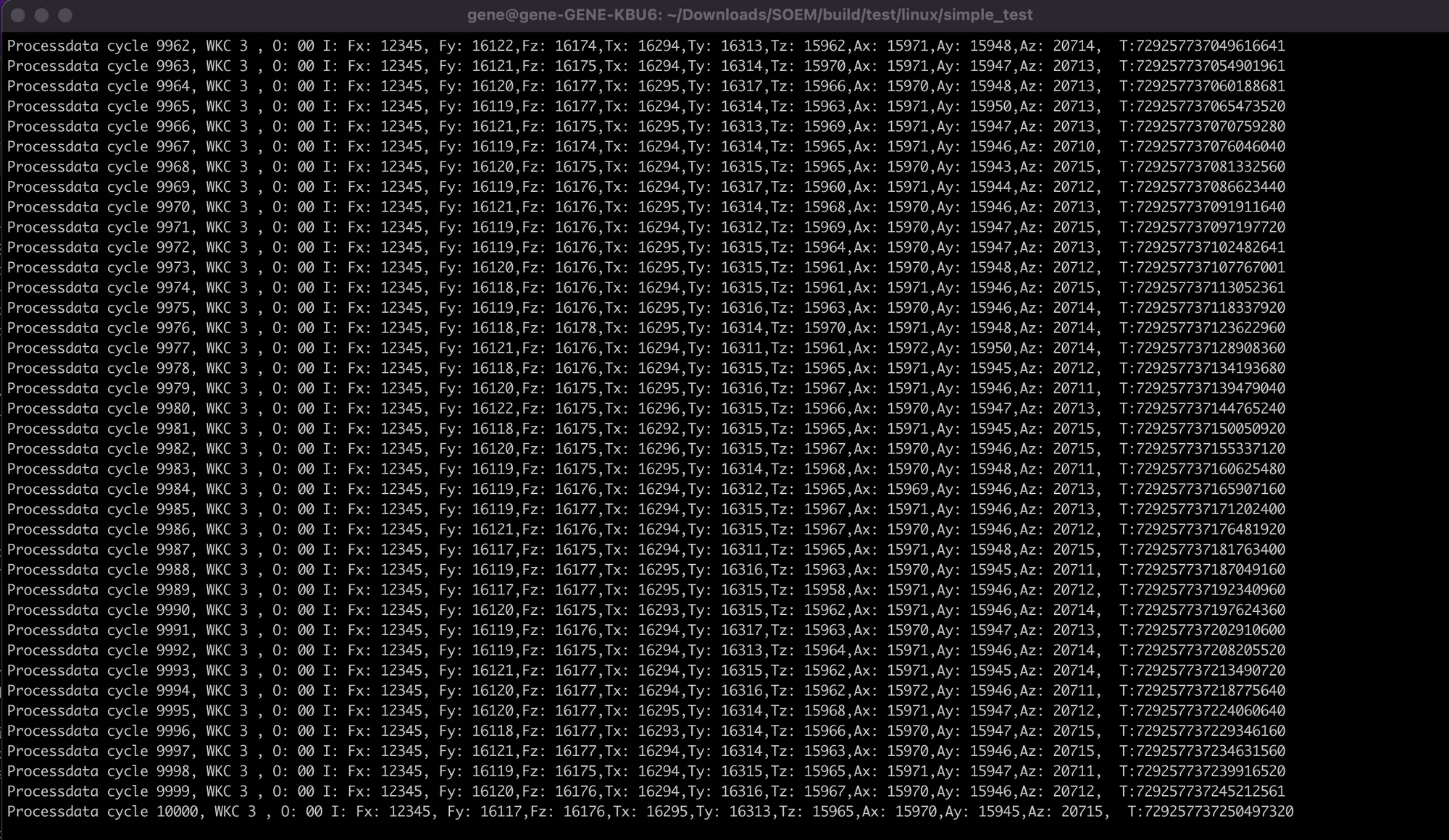

SOEM/build/test/linux/simple_test sudo ./simple_test -(port)
