Smart 6-axis Force Torque Sensor, AFT200-D80-EC

Thank you for purchasing our Force Torque sensor. This manual contains the information necessary for the correct use of the AIDIN ROBOTICS AFT200-D80 sensor. Please carefully read this manual when using this software. Please note that the basic performance of the product will not be exhibited when the robot system is used out of conditions. This manual describes possible dangers and consequences using Force Torque sensor. Be sure to comply with safety precautions written in this manual to use safety and correctly.

NOTICE

This manual Do NOT allow copy, reproduction or share without authorization of AIDIN ROBOTICS. Please notify us any errors in this manual or the provided instructions.

MANUFACTURER

AIDIN ROBOTICS

SAFETY PRECAUTIONS

Installation of Force Torque sensor MUST be performed by qualified personnel in accordance with national and local codes. Please carefully read this manual when using this software.

WARNING & CAUTION

This symbol indicates that a danger of possible serious injury or death exists if the associated instructions are not followed properly.

This symbol indicates that a danger of possible harm to people or physical damage to equipment and facilities exists if the associated instructions are not followed properly.

AFT200-D80-EC sensor from AIDIN ROBOTICS meets CE-certified “A Class”

1. Introduction

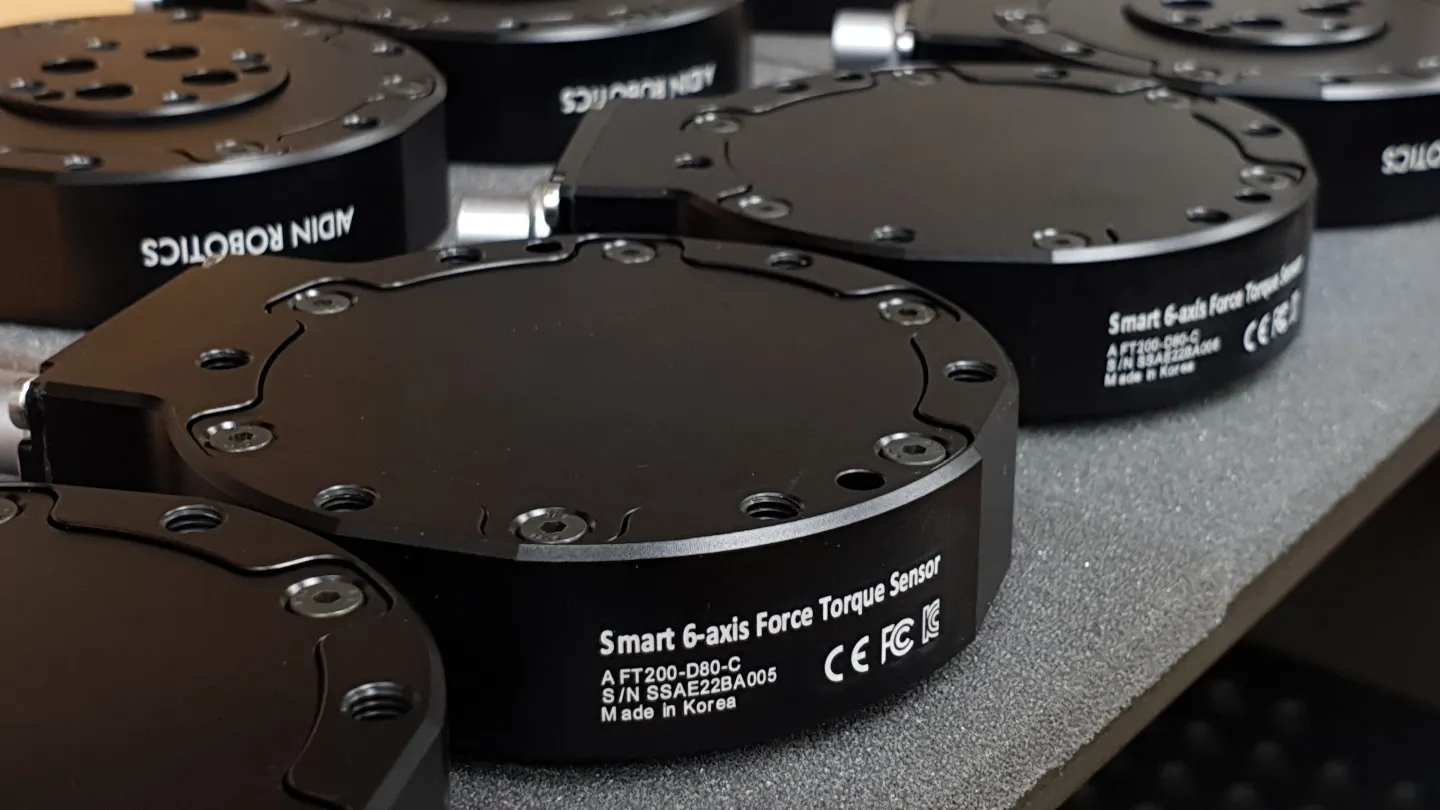

1.1 Smart 6-axis Force Torque Sensor, AFT200-D80

The AIDIN ROBOTICS F/T sensor measures components of force (Fx, Fy, Fz) and torque (Mx, My, Mz) . The AFT200-D80-EC model supports to stream data to user devices via EtherCAT communication. The sensor is IP65 rated and IP65 rated sensor connector provided with the sensor. The AIDIN ROBOTICS sensors provide resolved force and torque data measured in N and Nm accordingly.

1.2 Key features

•

Smart 6-axis force/torque sensor

•

All-in-one sensor (No additional amplifier)

•

Digital output communications (CAN, etc)

•

Easy installation and data collection

•

Grippers, robot hands, collaborative robot, industrial robot

1.3 Specs.

Index	Unit	Value
Operating voltage	VDC	12-24
Max. safe excitation voltage	VDC	24
Nominal force range (F_XYZN)	N	200
Nominal torque range (M_XYZN)	Nm	15
Limit force (F_XYZL)	N	300
Limit torque (M_XYZL)	Nm	20
Dimensions	mm	D80 x H21.5
Weight	g	236
Temperature	℃	10-50
Sample rate	Hz	1000
Interfaces		EtherCAT
Wire	Length: 1.5 m

2. Installation Guide

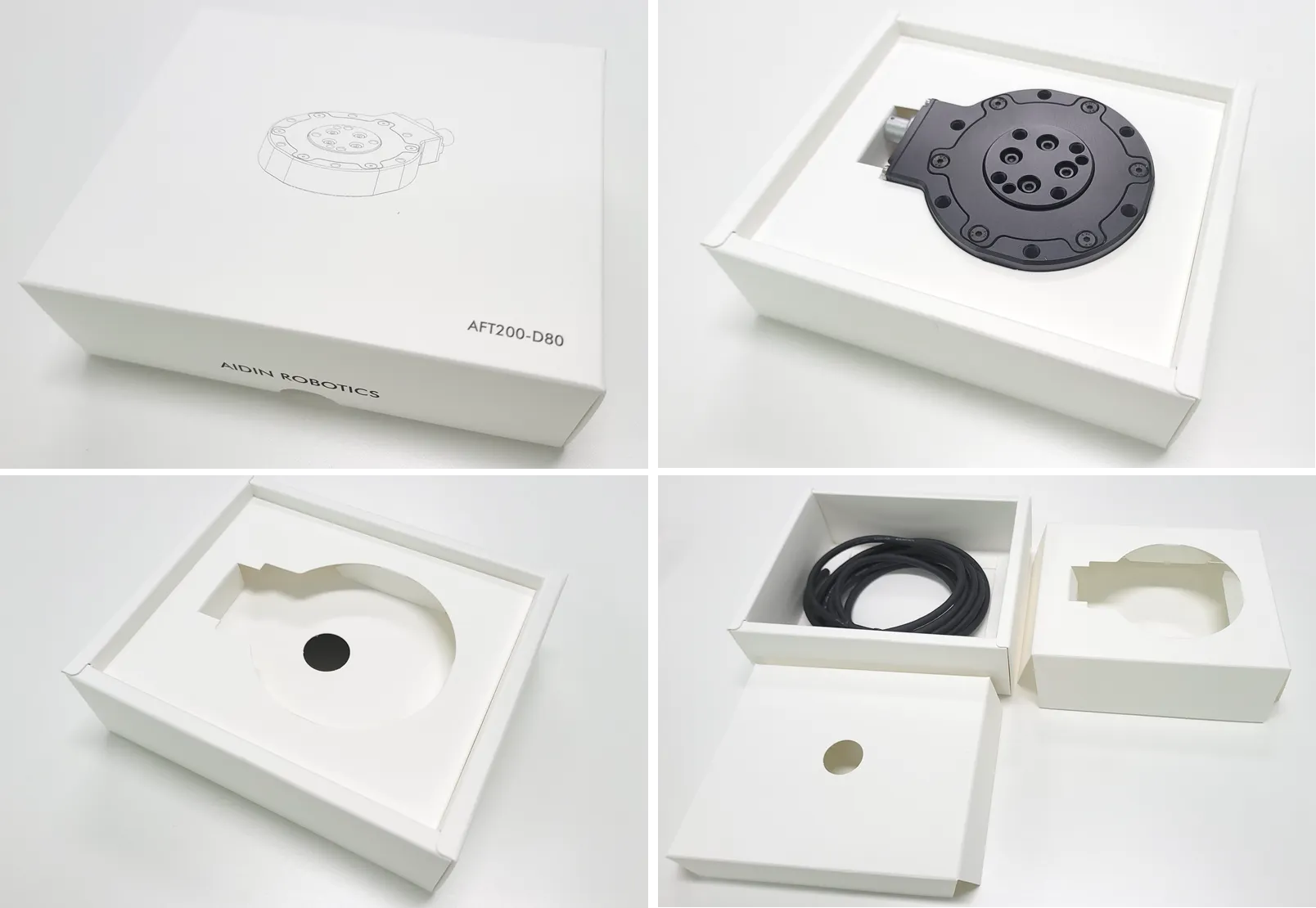

2.1 Basic Components

•

AFT200-D80 x 1 EA

•

1.5m  Cable x 1 EA

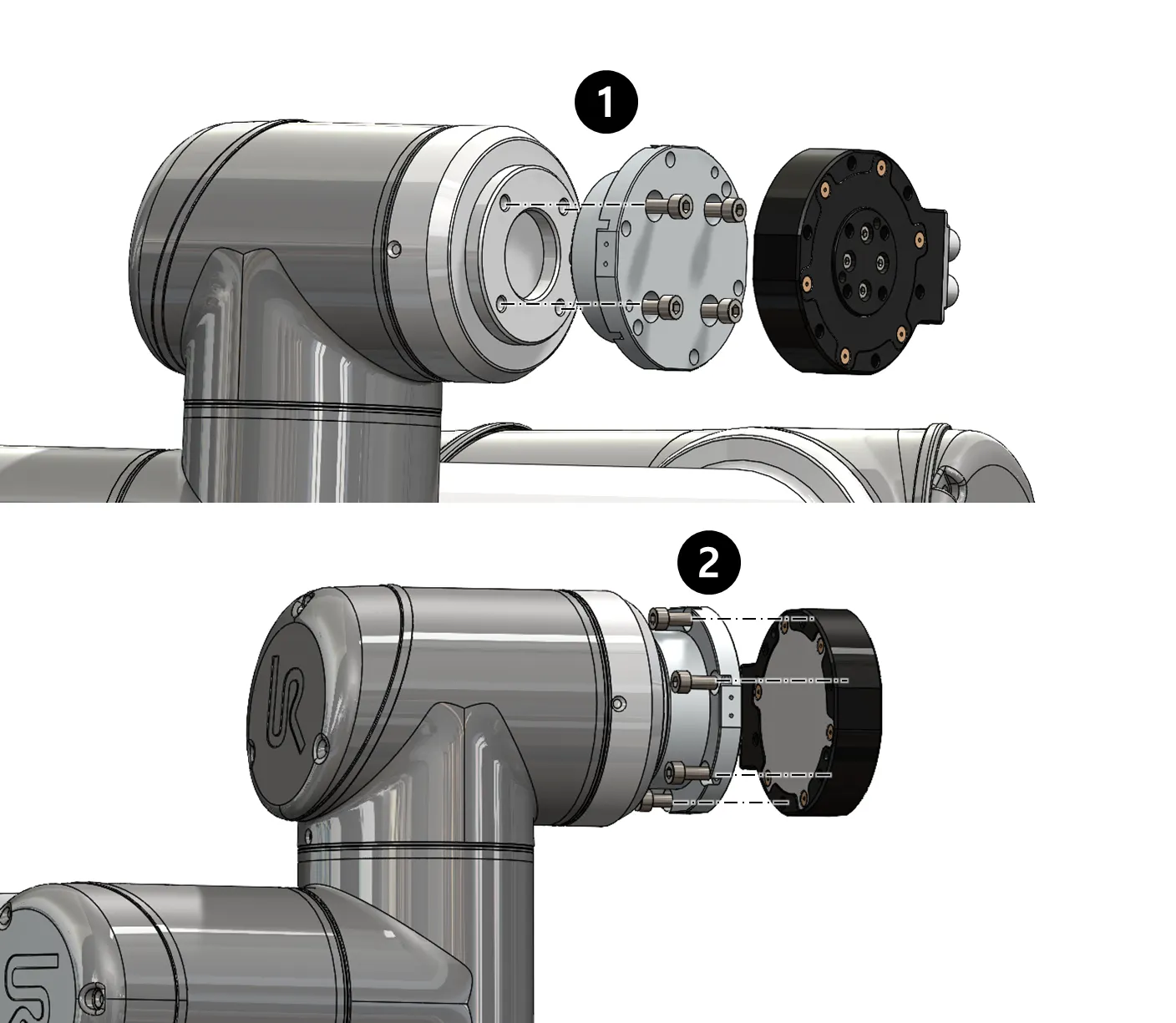

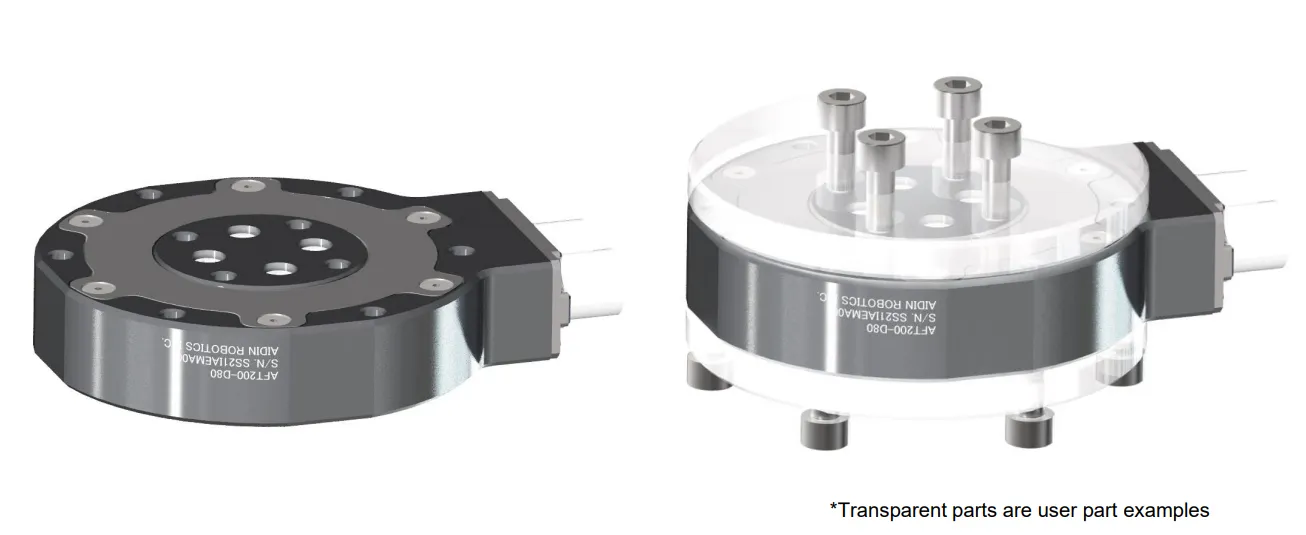

2.2 Mounting

•

M5 bolt 5.2Nm required for tightening

•

Performance cannot be guaranteed and A/S not possible when disassembling internal/external bolts

•

Sensor tightening order

•

CAUTION OF CABLE CUTTING AND EXCESS PULLING

•

Secure the sensor line with the robot so that it does not pull as it moves

◦

Do not fix it to the robot using cable ties, etc., or use cable ties to fix it in a bundle shape like other wires

◦

We recommend that you use Velcro to fix it with the robot, and please use Velcro to fix it when fixing it in a bundle form with other lines

Performance CANNOT be guaranteed if not followed to the tightening torque guide.

If the sensor line is not fixed to the robot, the output signal may have a noise due to the pulled by robot

Please check More detail setup guide as follow:

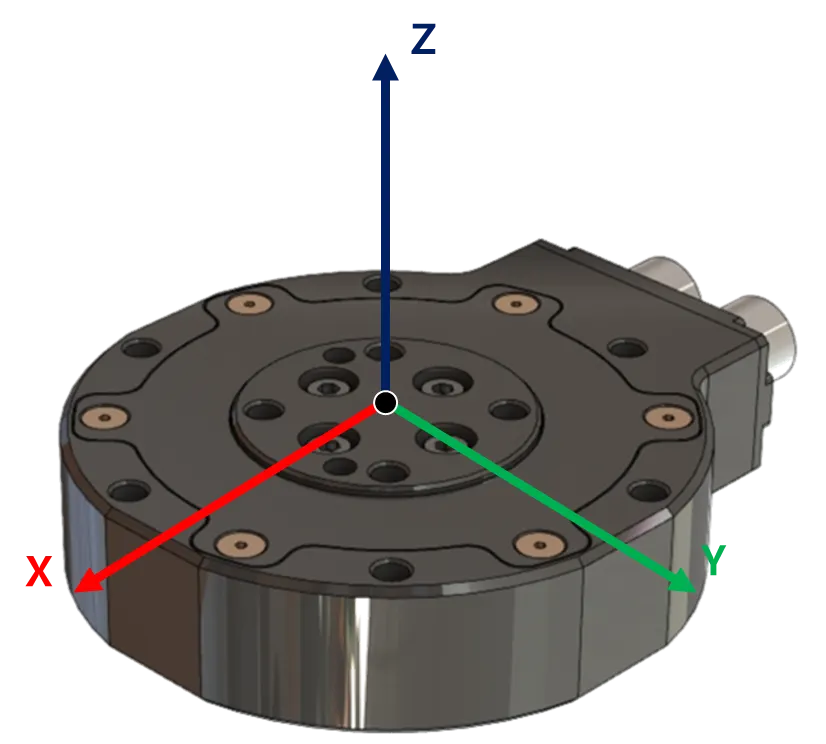

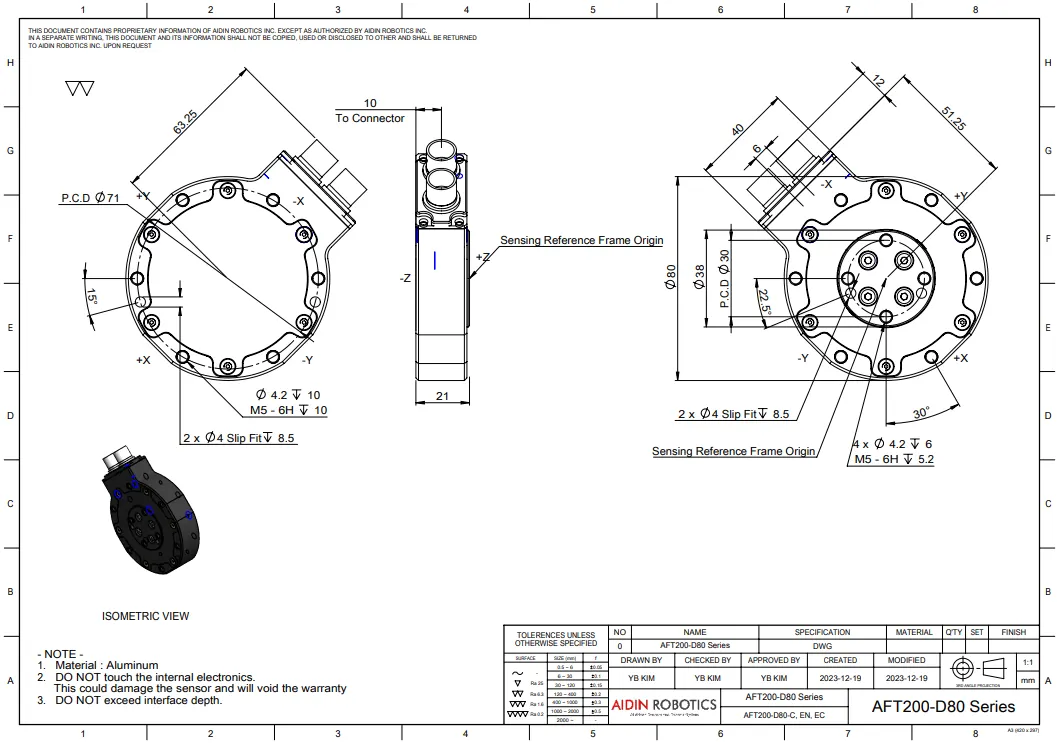

2.3 AXIS & Drawings

Drawing File :

AFT200_D80.pdf

232.5KB

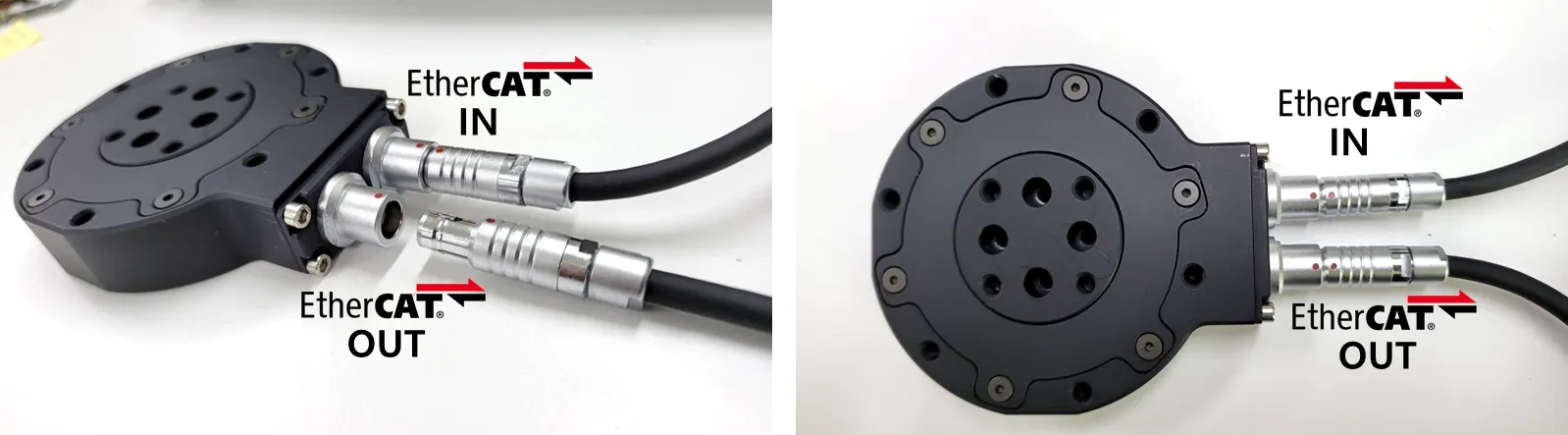

2.3 Wiring

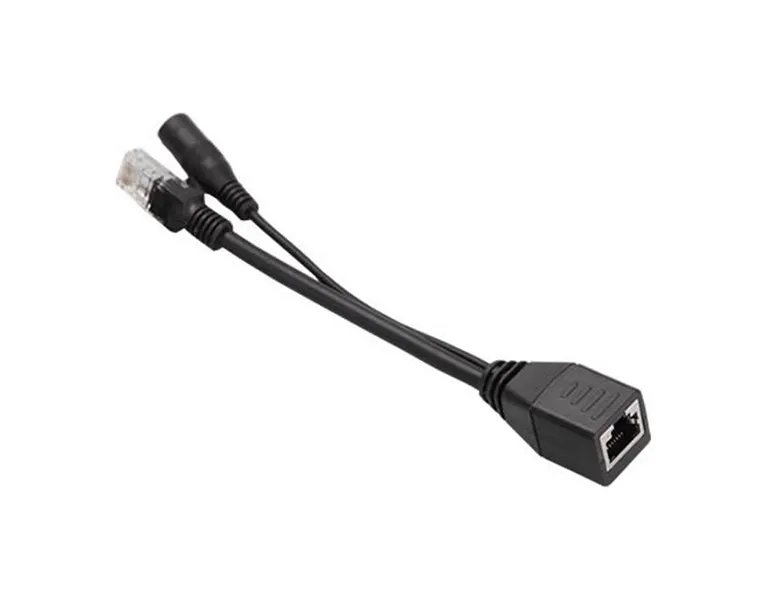

The EtherCAT device are provided with a POE injector and a 12-24V AC/DC power supply. The sensor is complying with 802.3af Mode A protocol, but the power is being delivered by only one unused pair of the Cat5e ethernet cable. Make sure DO NOT apply the over voltage to the sensor cable. The user should connect the sensor cable to the “POE” marked port of the injector. Other POE Injectors compatible with the 802.3af Mode A can be used with 12-24V supply voltage.

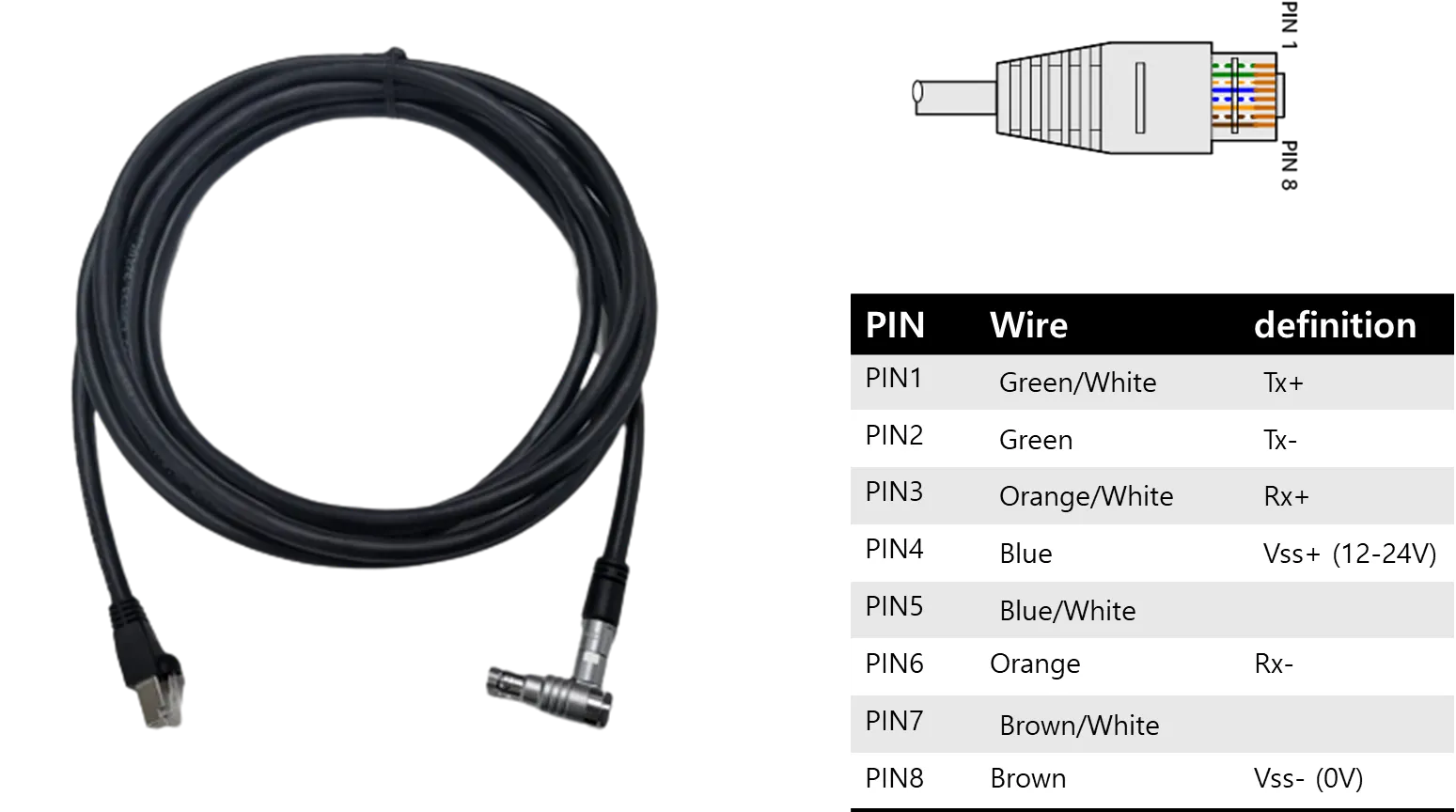

2.3.1 Pin out

•

Use POE Connector to connect Power & EtherNET signal

	Cable wires color	EtherCAT Signal
1	Green/White	TX+
2	Green	TX-
3	Orange/White	RX+
4	Blue	12V
5	Blue/White	NC
6	Orange	RX-
7	Brown/White	NC
8	Brown	GND

2.5 EtherCAT interface

The AFT200-D80-EC model support the RUN state where the sensor is providing the force/torque measurements. Also the IMU measurements can be activated by using activating signal to AFT200-D80-EC sensor. To activate the IMU signal or biasing the sensor signal, please follow the instructor in section 2.6.

The EtherCAT interface is used to give the users the following capabilities: • Read the Product Number, Serial Number, etc. • Read Force/Torque Data

→ Force [N] = Force output/100-300, Torque = Torque output/500-50

• Read IMU data

→ Acceleration [m/s^2]= (Acceleration value – 32767)/1000

→ gyroscope [ ˚/s] = (gyroscope value – 32767)/16.4

2.5.1 PDO interface The PDO interface exchanges data in real time with the F/T sensor. The PDO mapping used is given in the following:

2.5.1.1 RxPDO1: Object 0x1600 Digital Output

Name Type	Index	Subindex	Size	Bit Size	Access
Digital Output	0x7000	0x00	BOOL	1	RO
BIAS_ON	0x7000	0x01	BOOL	1	RO
ACC_ON	0x7000	0x02	BOOL	1	RO
GYRO_ON	0x7000	0x03	BOOL	1	RO
NC	0x7000	0x04	BOOL	1	RO

2.5.1.2 TxPDO1: Object 0x1A00 Digital Output

Name Type	Index	Subindex	Size	Bit Size	Access
Status	0x6000	0x00	SINT	8	RO
Force x	0x6000	0x01	REAL	32	RO
Force y	0x6000	0x02	REAL	32	RO
Force z	0x6000	0x03	REAL	32	RO
Torque x	0x6000	0x04	REAL	32	RO
Torque y	0x6000	0x05	REAL	32	RO
Torque z	0x6000	0x06	REAL	32	RO
Out of Range	0x6000	0x07	REAL	32	RO
Out of Range status	0x6000	0x08	REAL	32	RO
Acceleration x	0x6000	0x09	REAL	32	RO
Acceleration y	0x6000	0x0a	REAL	32	RO
Acceleration z	0x6000	0x0b	REAL	32	RO
Angular Rate x	0x6000	0x0c	REAL	32	RO
Angular Rate y	0x6000	0x0d	REAL	32	RO
Angular Rate z	0x6000	0x0e	REAL	32	RO
Temperature	0x6000	0x0f	REAL	32	RO

2.5.2 SDO interface

The SDO data configures the sensor and reads the manufacturing and calibration data. This section lists dictionary objects specific to the EtherCAT F/T sensor application; it does not list objects that are a required part of the EtherCAT standard. These dictionary objects can also be found in the ESI file on the website

Object		Name	Type	Description
0x2000	0	Status	RO
0x6000	0	Sensor Data	RO	Used to read the Force/Torque data, IMU etc. from the sensor
0x7000	0	Digital Output	RO

To stabilize the sensor signal, it is recommended to have a running time of about 30 minutes. * Please leave the sensor data on for at least 10 minutes before using it

The first 10 minutes of sensor output data can cause data to flow.

2.6 Force/Torque Out of Range

The sensor can operate up to its nominal capacity, while a single axis load. On Nominal capacity reading is incorrect and invalid.

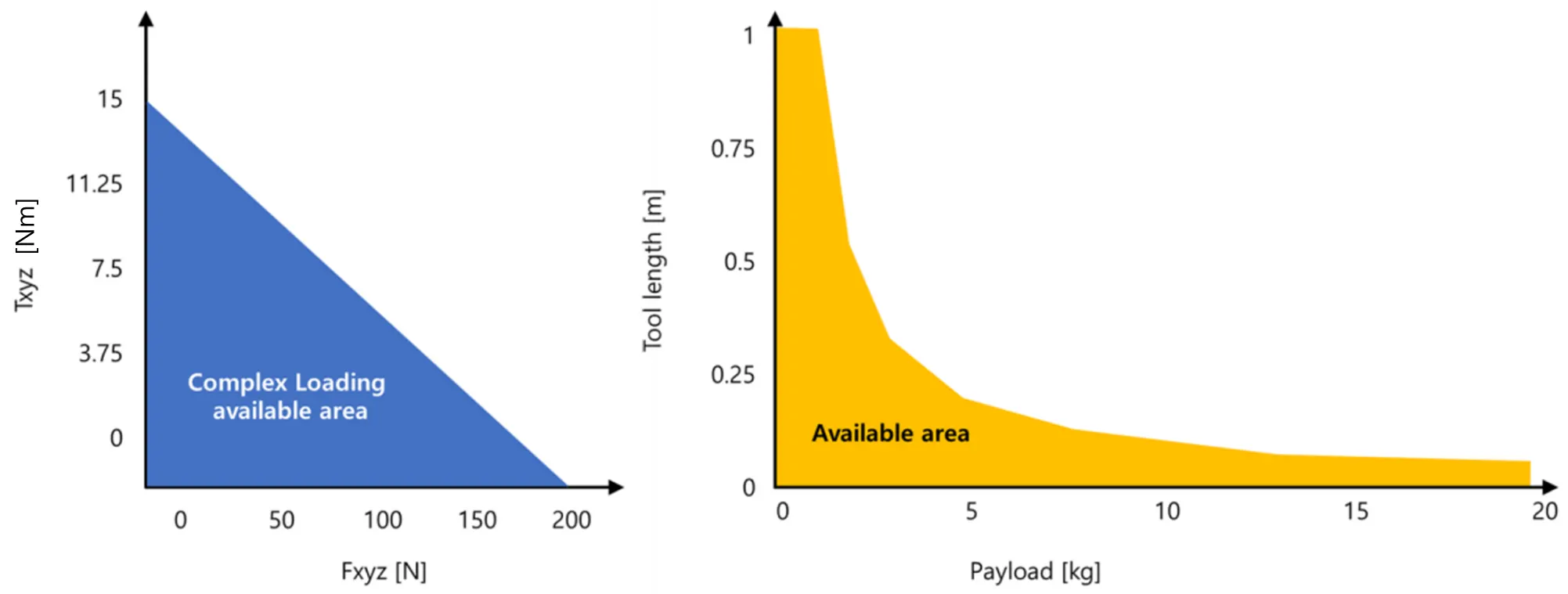

The nominal capacity of composite loading is The following diagram illustrates a complex loading scenario. The sensor cannot operate outside the normal operating area

The following graph shows the range of payloads and tool lengths that can be used with AFT200-D80-EC sensor for applications requiring high or moderate precision.

F/T load is outside the sensor’s detection capability. TxPDO1[0x6000, Index: 0x08] shows the value type and TxPDO1[0x6000, Index: 0x09] shows the status. • The total percentage of the calibrated range used by Fxy and Tz axes is greater than 105%. Refer to the following Fxy, Tz equation.

\sqrt{{F_x}^2+{F_y}^2}/{F_{xy}Range} +|{T_z}|/{T_{z}Range} >105 \%

• The total percentage of the calibrated range used by Fz and Txy axes is greater than 105%. Refer to the following Fz, Txy equation.

\sqrt{{T_x}^2+{T_y}^2}/{T_{xy}Range} +|{F_z}|/{F_{z}Range} >105 \%

3. SOFTWARE

3.1 Testing the EtherCAT in Windows application ( TwinCAT3 )

EtherCAT_manual.pdf

2383.9KB

3.1.1 ESI(EtherCAT Slave Information) XML file for EtherCAT

•

XML file name : AFT200-D80-EC.xml

AFT200_D80_EC.xml

56.0KB

•

Download the XML file and paste it to the installed directory of TwinCAT.  “C:/TwinCAT/3.1/Config/Io/EtherCAT”

3.1.2. Sequence of Testing

1. Create a TwinCAT project using Visual Studio. 2. Connect a LAN cable to EtherCAT Master (Ethernet adapter). 3. Turn on AFT sensor. 4. Scan the device. 5. Activate the TwinCAT in free-run mode 6. Observe the output values of PDO (Process Data Object) and SDO (Service Data Object)

3.2 Testing the EtherCAT in Linux application ( SOEM )

3.2.1 clone the SOEM source code from the following page

git clone https://github.com/OpenEtherCATsociety/SOEM
C++
복사

GitHub - OpenEtherCATsociety/SOEM: Simple Open Source EtherCAT Master

Simple Open Source EtherCAT Master. Contribute to OpenEtherCATsociety/SOEM development by creating an account on GitHub.

https://github.com/OpenEtherCATsociety/SOEM

Follow the installation steps according to the SOEM webpage

•

mkdir build

•

cd build

•

cmake ..

•

make

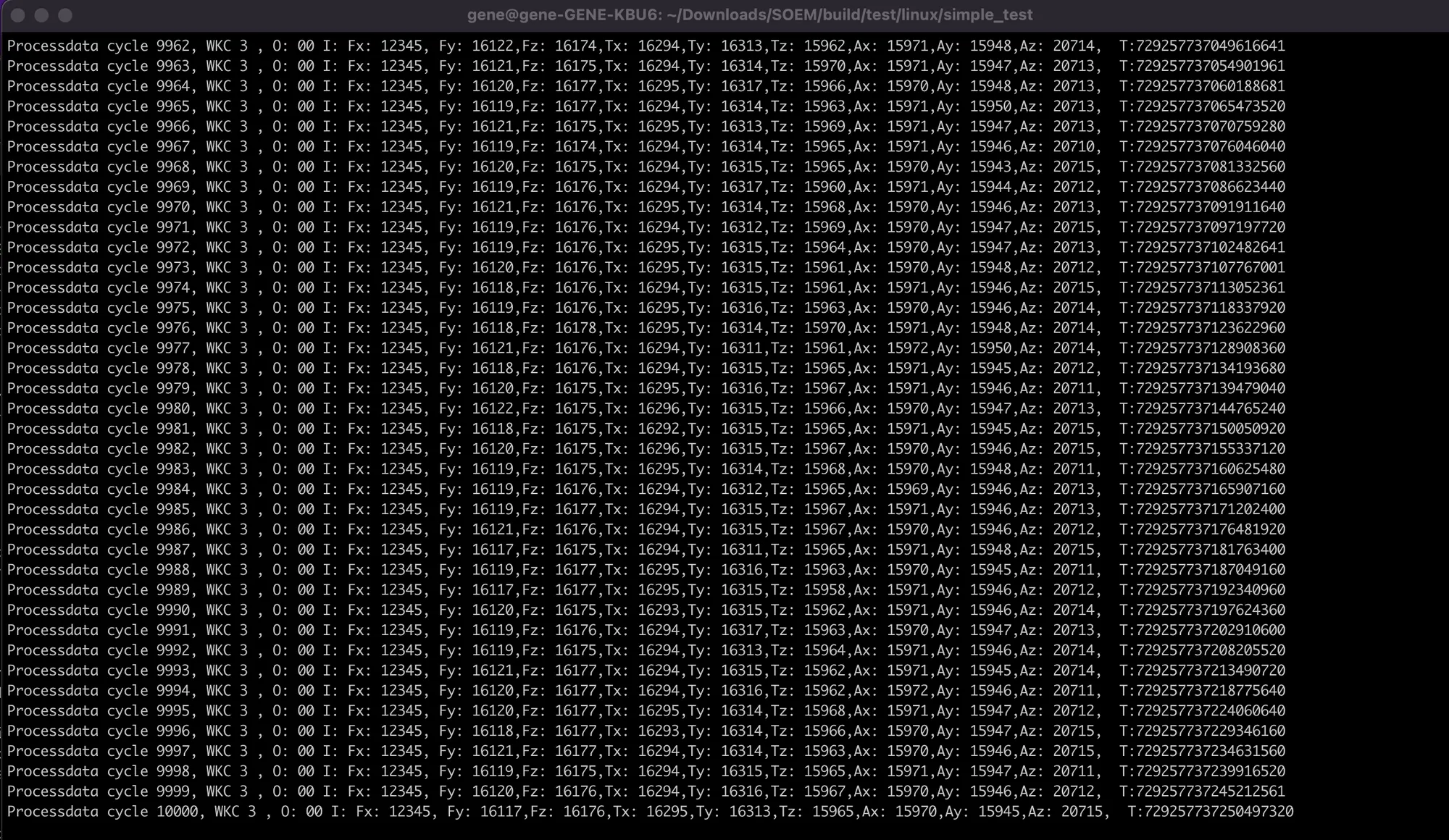

Copy the following code and paste to the simpletest.c code

/** \file
 * \brief Example code for Simple Open EtherCAT master
 *
 * Usage : simple_test [ifname1]
 * ifname is NIC interface, f.e. eth0
 *
 * This is a minimal test.
 *
 * (c)Arthur Ketels 2010 - 2011
 */

#include <stdio.h>
#include <string.h>
#include <inttypes.h>

#include "ethercat.h"

#define EC_TIMEOUTMON 500

char IOmap[4096];
OSAL_THREAD_HANDLE thread1;
int expectedWKC;
boolean needlf;
volatile int wkc;
boolean inOP;
uint8 currentgroup = 0;
boolean forceByteAlignment = FALSE;

void simpletest(char *ifname)
{
    int i, j, oloop, iloop, chk;
    needlf = FALSE;
    inOP = FALSE;

   printf("Starting simple test\n");

   /* initialise SOEM, bind socket to ifname */
   if (ec_init(ifname))
   {
      printf("ec_init on %s succeeded.\n",ifname);
      /* find and auto-config slaves */


       if ( ec_config_init(FALSE) > 0 )
      {
         printf("%d slaves found and configured.\n",ec_slavecount);

         if (forceByteAlignment)
         {
            ec_config_map_aligned(&IOmap);
         }
         else
         {
            ec_config_map(&IOmap);
         }

         ec_configdc();

         printf("Slaves mapped, state to SAFE_OP.\n");
         /* wait for all slaves to reach SAFE_OP state */
         ec_statecheck(0, EC_STATE_SAFE_OP,  EC_TIMEOUTSTATE * 4);

         oloop = ec_slave[0].Obytes;
         if ((oloop == 0) && (ec_slave[0].Obits > 0)) oloop = 1;
         if (oloop > 8) oloop = 8;
         iloop = ec_slave[0].Ibytes;
         if ((iloop == 0) && (ec_slave[0].Ibits > 0)) iloop = 1;
         if (iloop > 8) iloop = 8;

         printf("segments : %d : %d %d %d %d\n",ec_group[0].nsegments ,ec_group[0].IOsegment[0],ec_group[0].IOsegment[1],ec_group[0].IOsegment[2],ec_group[0].IOsegment[3]);

         printf("Request operational state for all slaves\n");
         expectedWKC = (ec_group[0].outputsWKC * 2) + ec_group[0].inputsWKC;
         printf("Calculated workcounter %d\n", expectedWKC);
         ec_slave[0].state = EC_STATE_OPERATIONAL;
         /* send one valid process data to make outputs in slaves happy*/
         ec_send_processdata();
         ec_receive_processdata(EC_TIMEOUTRET);
         /* request OP state for all slaves */
         ec_writestate(0);
         chk = 200;
         /* wait for all slaves to reach OP state */
         do
         {
            ec_send_processdata();
            ec_receive_processdata(EC_TIMEOUTRET);
            ec_statecheck(0, EC_STATE_OPERATIONAL, 50000);
         }
         while (chk-- && (ec_slave[0].state != EC_STATE_OPERATIONAL));
         if (ec_slave[0].state == EC_STATE_OPERATIONAL )
         {
            printf("Operational state reached for all slaves.\n");
            inOP = TRUE;
                /* cyclic loop */
            for(i = 1; i <= 10000; i++)
            {
               ec_send_processdata();
               wkc = ec_receive_processdata(EC_TIMEOUTRET);



                    if(wkc >= expectedWKC)
                    {
                        printf("Processdata cycle %4d, WKC %d , O:", i, wkc);

                        for(j = 0 ; j < oloop; j++)
                        {
                            printf(" %2.2x", *(ec_slave[0].outputs + j));
                        }

                        printf(" I:");
                     //Test
                        int Fx= *(ec_slave[0].inputs+1)*256+*(ec_slave[0].inputs);
                        int Fy= *(ec_slave[0].inputs+5)*256+*(ec_slave[0].inputs+4);
                        int Fz= *(ec_slave[0].inputs+9)*256+*(ec_slave[0].inputs+8);
                        int Tx= *(ec_slave[0].inputs+13)*256+*(ec_slave[0].inputs+12);
                        int Ty= *(ec_slave[0].inputs+17)*256+*(ec_slave[0].inputs+16);
                        int Tz= *(ec_slave[0].inputs+21)*256+*(ec_slave[0].inputs+20);
                        int Ax= *(ec_slave[0].inputs+25)*256+*(ec_slave[0].inputs+24);
                        int Ay= *(ec_slave[0].inputs+29)*256+*(ec_slave[0].inputs+28);
                        int Az= *(ec_slave[0].inputs+33)*256+*(ec_slave[0].inputs+32);

                        printf(" Fx: %d, Fy: %d,Fz: %d,Tx: %d,Ty: %d,Tz: %d,Ax: %d,Ay: %d,Az: %d, ", Fx, Fy,Fz,Tx,Ty,Tz,Ax,Ay,Az);
                        printf(" T:%"PRId64"\n",ec_DCtime);
                        needlf = TRUE;
                    }
                    osal_usleep(5000);

                }
                inOP = FALSE;
            }
            else
            {
                printf("Not all slaves reached operational state.\n");
                ec_readstate();
                for(i = 1; i<=ec_slavecount ; i++)
                {
                    if(ec_slave[i].state != EC_STATE_OPERATIONAL)
                    {
                        printf("Slave %d State=0x%2.2x StatusCode=0x%4.4x : %s\n",
                            i, ec_slave[i].state, ec_slave[i].ALstatuscode, ec_ALstatuscode2string(ec_slave[i].ALstatuscode));
                    }
                }
            }
            printf("\nRequest init state for all slaves\n");
            ec_slave[0].state = EC_STATE_INIT;
            /* request INIT state for all slaves */
            ec_writestate(0);
        }
        else
        {
            printf("No slaves found!\n");
        }
        printf("End simple test, close socket\n");
        /* stop SOEM, close socket */
        ec_close();
    }
    else
    {
        printf("No socket connection on %s\nExecute as root\n",ifname);
    }
}

OSAL_THREAD_FUNC ecatcheck( void *ptr )
{
    int slave;
    (void)ptr;                  /* Not used */

    while(1)
    {
        if( inOP && ((wkc < expectedWKC) || ec_group[currentgroup].docheckstate))
        {
            if (needlf)
            {
               needlf = FALSE;
               printf("\n");
            }
            /* one ore more slaves are not responding */
            ec_group[currentgroup].docheckstate = FALSE;
            ec_readstate();
            for (slave = 1; slave <= ec_slavecount; slave++)
            {
               if ((ec_slave[slave].group == currentgroup) && (ec_slave[slave].state != EC_STATE_OPERATIONAL))
               {
                  ec_group[currentgroup].docheckstate = TRUE;
                  if (ec_slave[slave].state == (EC_STATE_SAFE_OP + EC_STATE_ERROR))
                  {
                     printf("ERROR : slave %d is in SAFE_OP + ERROR, attempting ack.\n", slave);
                     ec_slave[slave].state = (EC_STATE_SAFE_OP + EC_STATE_ACK);
                     ec_writestate(slave);
                  }
                  else if(ec_slave[slave].state == EC_STATE_SAFE_OP)
                  {
                     printf("WARNING : slave %d is in SAFE_OP, change to OPERATIONAL.\n", slave);
                     ec_slave[slave].state = EC_STATE_OPERATIONAL;
                     ec_writestate(slave);
                  }
                  else if(ec_slave[slave].state > EC_STATE_NONE)
                  {
                     if (ec_reconfig_slave(slave, EC_TIMEOUTMON))
                     {
                        ec_slave[slave].islost = FALSE;
                        printf("MESSAGE : slave %d reconfigured\n",slave);
                     }
                  }
                  else if(!ec_slave[slave].islost)
                  {
                     /* re-check state */
                     ec_statecheck(slave, EC_STATE_OPERATIONAL, EC_TIMEOUTRET);
                     if (ec_slave[slave].state == EC_STATE_NONE)
                     {
                        ec_slave[slave].islost = TRUE;
                        printf("ERROR : slave %d lost\n",slave);
                     }
                  }
               }
               if (ec_slave[slave].islost)
               {
                  if(ec_slave[slave].state == EC_STATE_NONE)
                  {
                     if (ec_recover_slave(slave, EC_TIMEOUTMON))
                     {
                        ec_slave[slave].islost = FALSE;
                        printf("MESSAGE : slave %d recovered\n",slave);
                     }
                  }
                  else
                  {
                     ec_slave[slave].islost = FALSE;
                     printf("MESSAGE : slave %d found\n",slave);
                  }
               }
            }
            if(!ec_group[currentgroup].docheckstate)
               printf("OK : all slaves resumed OPERATIONAL.\n");
        }
        osal_usleep(10000);
    }
}

int main(int argc, char *argv[])
{
   printf("SOEM (Simple Open EtherCAT Master)\nSimple test\n");

   if (argc > 1)
   {
      /* create thread to handle slave error handling in OP */
//      pthread_create( &thread1, NULL, (void *) &ecatcheck, (void*) &ctime);
      osal_thread_create(&thread1, 128000, &ecatcheck, (void*) &ctime);
      /* start cyclic part */
      simpletest(argv[1]);
   }
   else
   {
      ec_adaptert * adapter = NULL;
      printf("Usage: simple_test ifname1\nifname = eth0 for example\n");

      printf ("\nAvailable adapters:\n");
      adapter = ec_find_adapters ();
      while (adapter != NULL)
      {
         printf ("    - %s  (%s)\n", adapter->name, adapter->desc);
         adapter = adapter->next;
      }
      ec_free_adapters(adapter);
   }

   printf("End program\n");
   return (0);
}
C++
복사

do make in build folder

then run the simpletest program as follow

SOEM/build/test/linux/simple_test
sudo ./simple_test -(port)
C++
복사

Q & A

사용

성능

소프트웨어

하드웨어

NC는 어떤 의미인가요?

- Not Connected(NC)란 의미 입니다.

Can I extend the cable?

- We are not responsible for any problems caused by the use of non-cable manufactured cables.

- It is recommended that the cable length be less than 1m, and use up to 3m.

센서를 여러 개 동시에 사용 가능한가요? 최대 몇 개 까지 가능한가요?

CAN 라인만 병렬로 연결해주시면 여러 개의 센서를 하나의 CAN 장비로 데이터수집가능합니다. 관련하여 매뉴얼에 다중 센서 연결 구성을 참고하시기 바랍니다. AFT-MINI는 최대 100bps 정도의 데이터를 출력하며, 범용 CAN-to-USB 디바이스(1Mbps)를 사용할 경우 단일 디바이스로 10개까지 사용 가능합니다. 다중 센서 사용을 원하실 경우, CAN ID를 미리 지정하여 주셔야 합니다.

What is the waterproof grade?

- No waterproof/dustproof.

사용 온도초과시 어떤문제가 생기나요?

허용 범위 내의 온도 변화는 보정값에 의해 출력 됩니다. 하지만 권장온도 범위를 넘어서 사용하는 경우에는 측정값의 왜곡을 초래 하여 비정상적인 값이 출력됩니다.

추가 소프트웨어를 개발 하는 것이 가능한가요?

- 별도의 협의와 상담을 통해 진행 됩니다.

센서를 직접 분해 해도 괜찮은가요?

- 센서 분해시 A/S 정책이 소멸 되며 센서 보정 값이 틀어 질 수 있습니다.
