revision date: 2025.07.16
1. Introduction
1.1 Miniature 6-axis Force Torque Sensor
1.2 Key features
•
Miniature 6-axis force/torque sensor
•
All-in-one sensor (No additional amplifier)
•
Digital output communications (CAN, etc)
•
Easy installation and data collection
•
Grippers, robot hands, medical, and VR/haptics

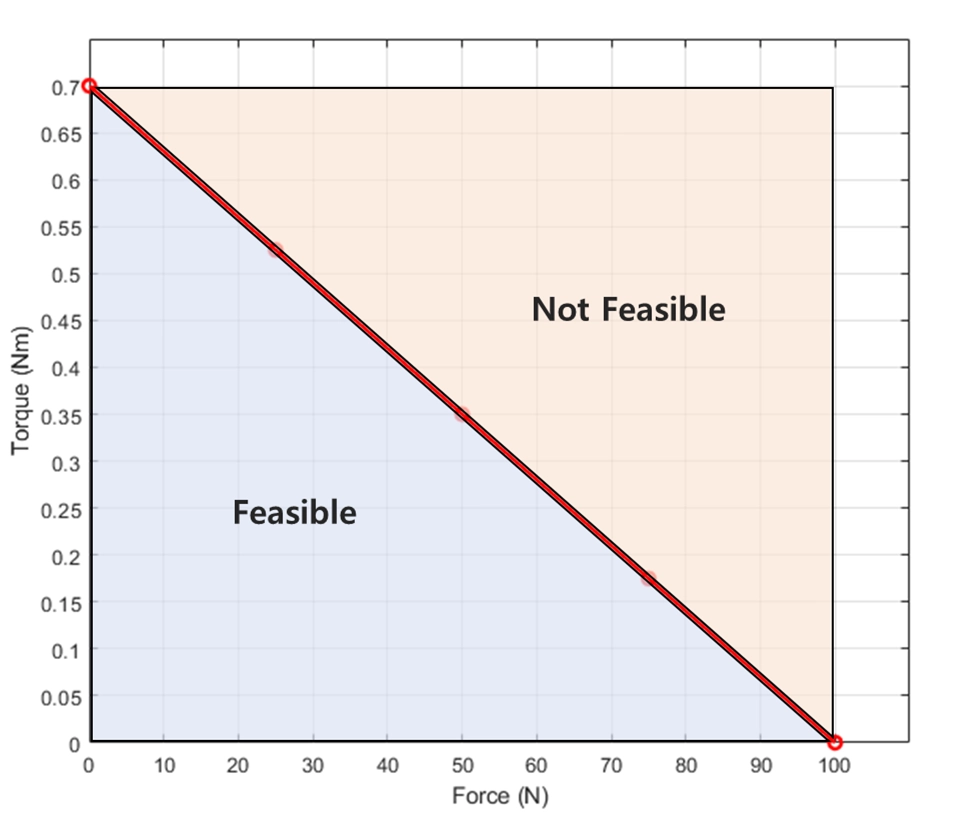

1.3 Specification
Index | AFT100-D20-C | Unit |
Operating voltage | 5 | VDC |
Max. safe excitation voltage | 10 | VDC |
Nominal force range (F_XYZN) | 100 | N |
Nominal torque range (M_XYZN) | 0.75 | Nm |
Dimensions | D20 x H13 | mm |
Weight | 8.1 | g |
Temperature | 10-50 | ℃ |
Sample rate | 300 | Hz |
Interfaces | CAN 2.0A | Bitrate: 1,000 Kbps |
Connector | For User:
CAN_H / CAN_L / VCC / GND | FPC: 0.5 pitch, 8pin
Length: 50, 100, 200 mm |
1.4 Spec sheet
2. Installation Guide
2.1 Components
•
AFT100-D20 x 1 EA (FPC cable integrated, selected when ordering)
•
FPC-DIP conversion board (for testing)
2.2 Mounting
•
Must be fastened with M2 bolt 1.5 kgfcm (0.15Nm)
•
Performance cannot be guaranteed and A/S is not possible when disassembling internal bolts
•
Be careful of cable cuts and excessive pulling
•
Force torque coordinate system
2.3 Connection
•

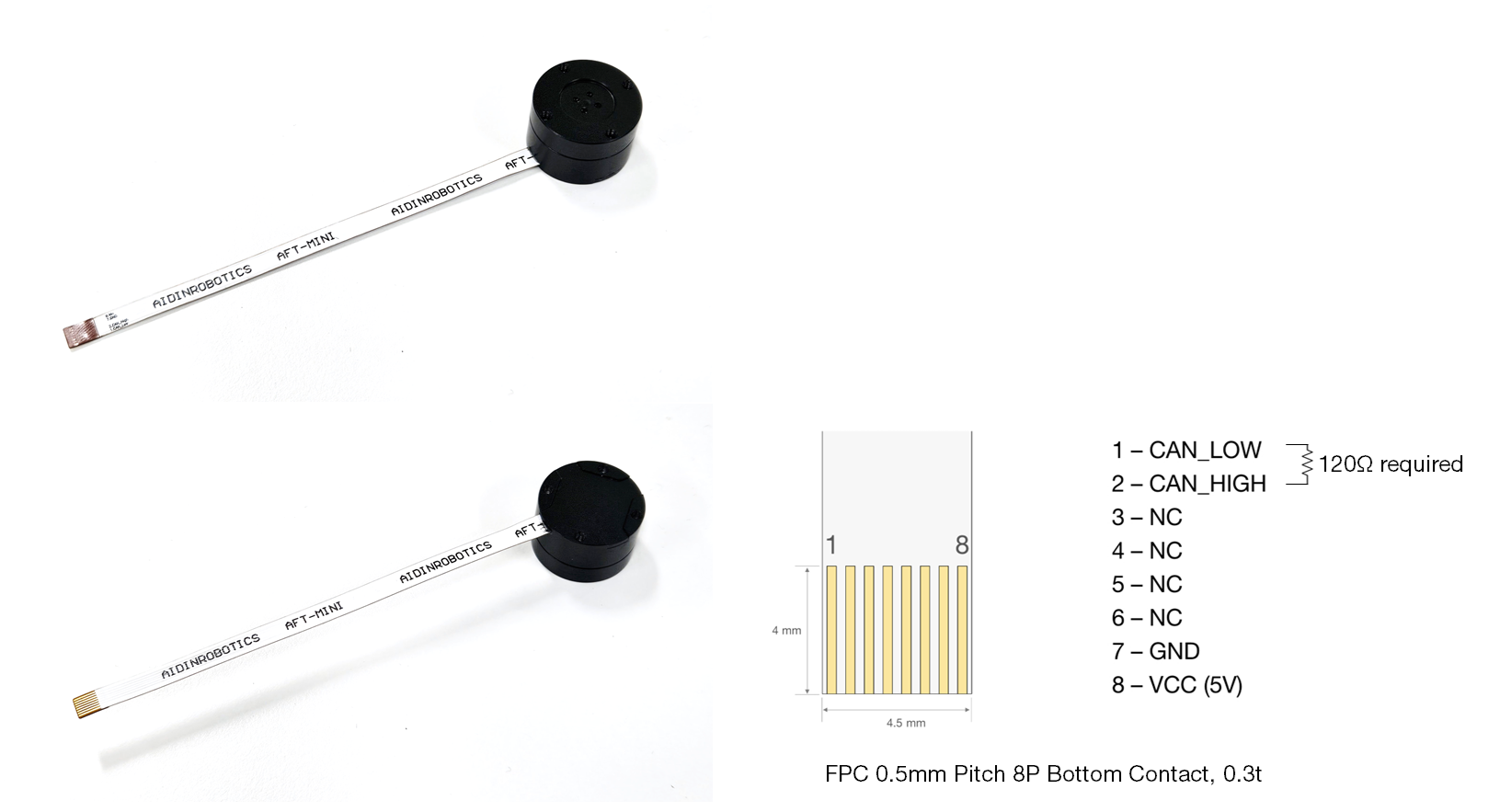

Cable pinout
◦
For user: CAN_H / CAN_L / VCC / GND (4pin)
◦
60 - 120 Ohm termination resistor should be connected between CAN_H and CAN_L
◦
Length: 50, 100, 200 mm (order option)
◦
FPC 0.5mm Pitch 8P Bottom Contact, 0.3t
•

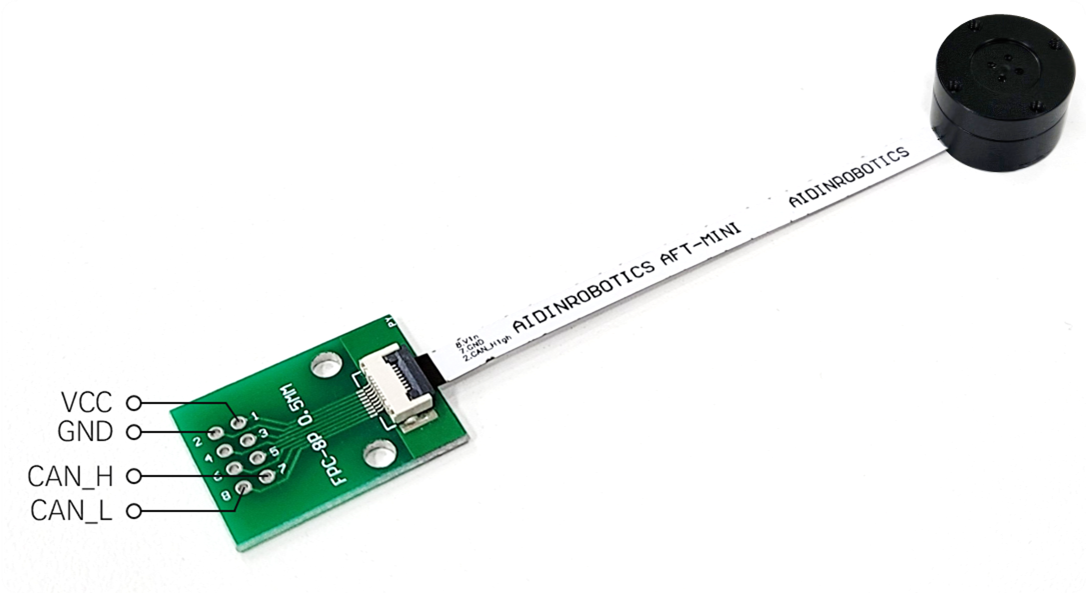

Conversion board connection example
◦
FPC 0.5mm pitch to DIP converting board
◦
For easy test set-up
◦
60-120 Ohm termination resistance required (between CAN_H and CAN_L)
◦
For system integration, it is recommended to have a connector built into the board.
(Connector information: FFC/FPC connector 8P ZIF, R/A, SMT ONE TOUCH FLIP LOCK)
•
Example of CAN_H, CAN_L line and terminating resistance configuration for multiple connections
(individual ID setting required- factory setting)
•

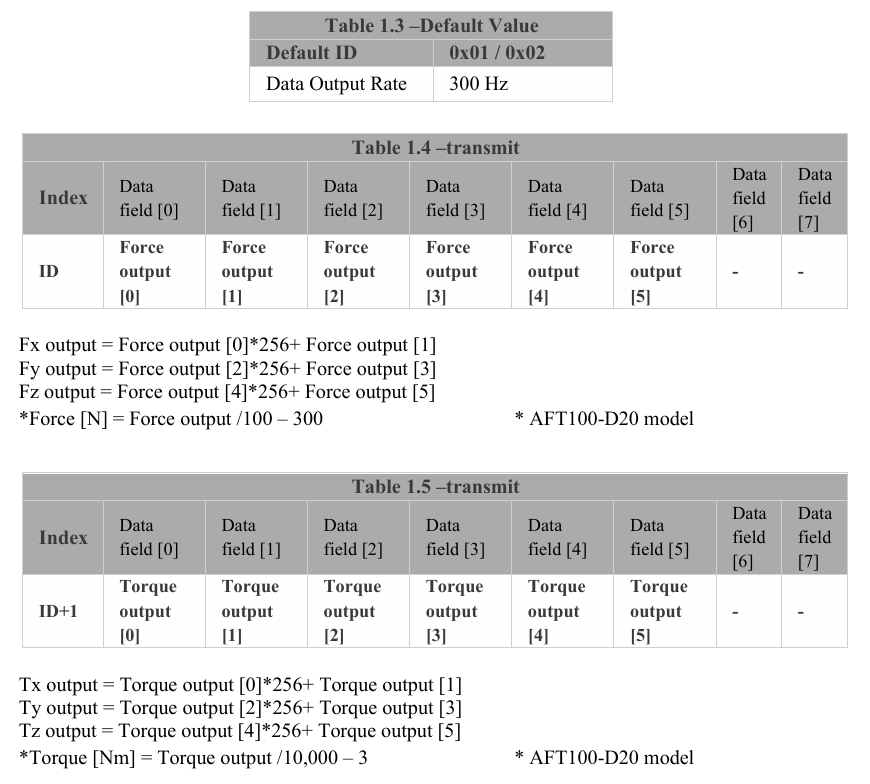

Output data format
3. Software
•
USB-to-CAN device driver installation
◦
You can use other CAN support boards, but use IXXAT's converter to use the provided sample program.

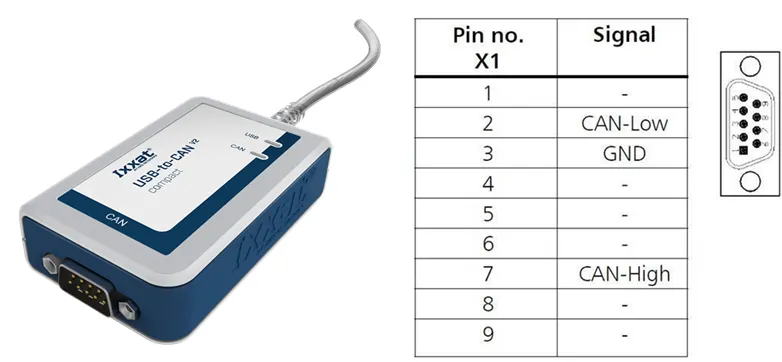

USB-to-CAN V2 (ixxat.com), version used in the manual: 1.01.0281.11001
IXXAT CAN VCI V4 - Windows drivers, VCI V4 - Windows 11, 10, 8, 7 [Driver, canAnalyser-Mini, Manuals, LabView and other add-ons]*
*When installing, check VCI V4 and reboot the PC after installation (required)
•

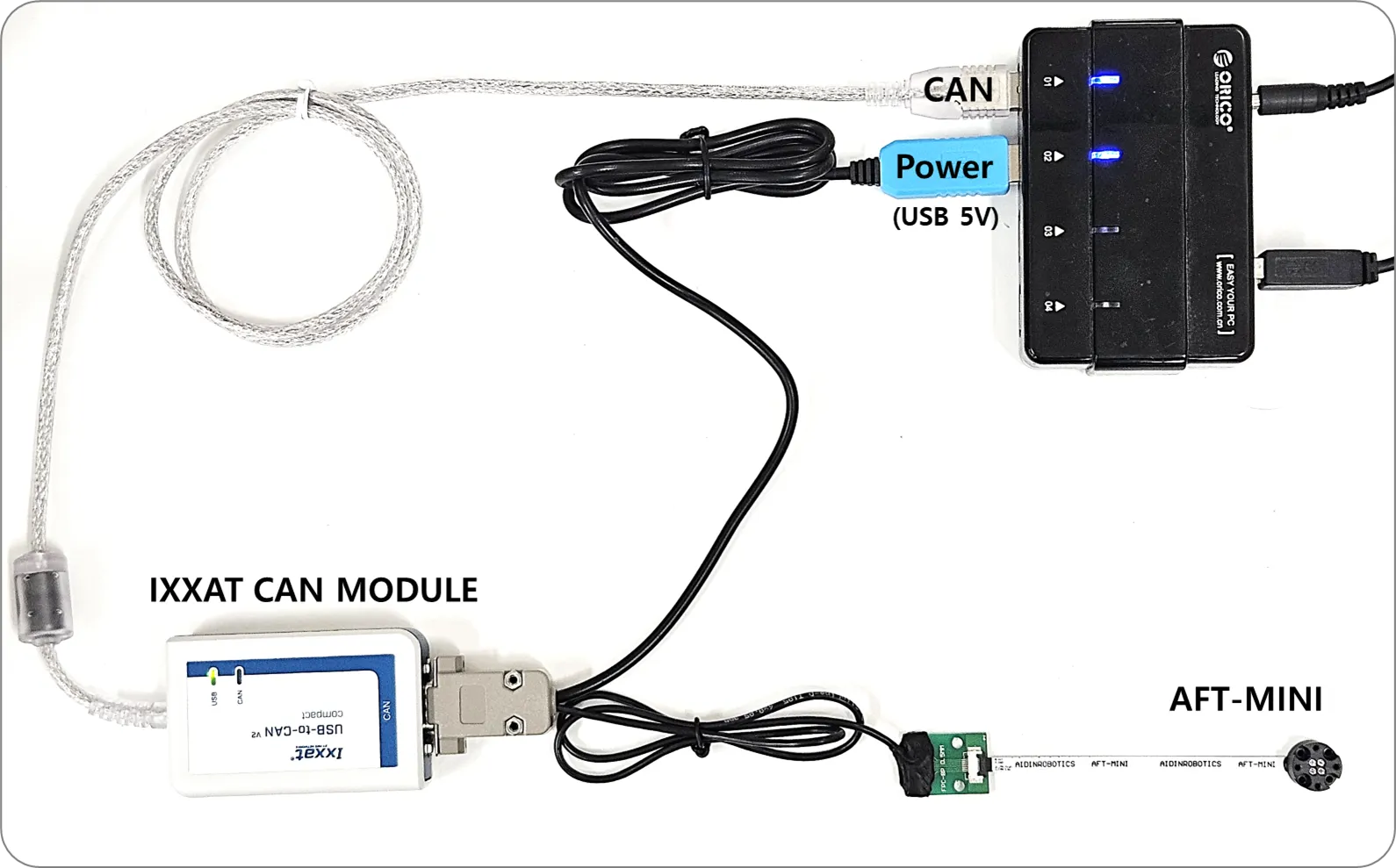

Test cable connection setup
•

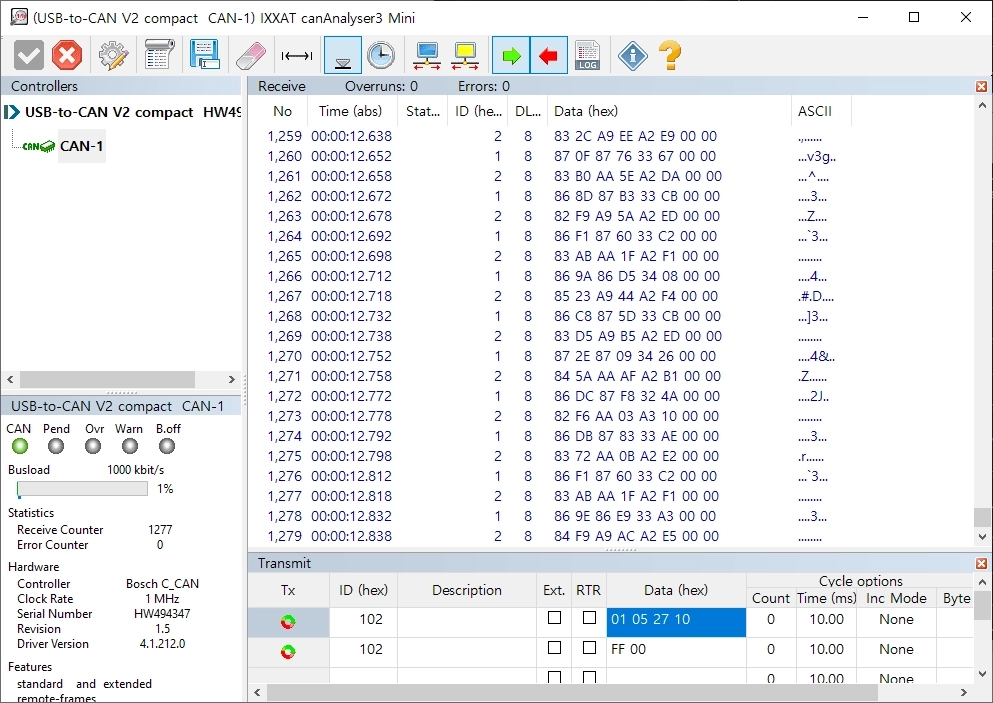

CAN bus program (provided by IXXAT)
◦
CanAnalyzer3 Mini
windows→ IXXAT→ IXXAT CanAnalyzer3 Mini
•
Sample program provided by Aidin Robotics
◦
Install CAN driver and reboot(required) - Skip if already completed above
IXXAT CAN VCI V4 - Windows drivers
◦
Install sample_installer (run sample_install.exe)
◦
After connecting the sensor, run AFT-MINI SAMPLE.exe
•
Pop-up screen
1.

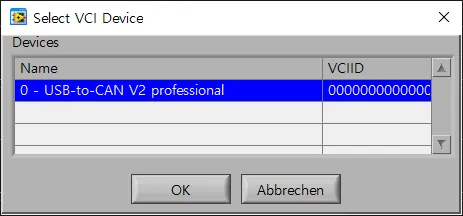

CAN device selection
Select your device. Devices currently connected to the PC are displayed in a list.
Click the applicable device and press the OK button.
※ The sample program was created based on IXXAT's USB-to-CAN converter.
2.
Select a product and enter CAN ID
Select the AFT100-D20 and press the ON button.
Enter the CAN ID of the sensor you connected.
(Default 1A, 1B ⇒ Decimal 26 input, can be checked in IXXAT CanAnalyzer)
3.
Zero Bias
Initialize all 6-axis force/torque data to zero.
By eliminating installation and attachment factors, the desired force value can be measured.
•
Interface description
① Program run
Run the sample program.
② Graph plot
You can check real-time data of 6-axis force/torque data (Fx, Fy, Fz, Tx, Ty, Tz) in graphs.
③ Select a product
Select the AFT100-D20 and press the ON button.
④ CAN ID
Set the CAN ID of the connected sensor. If there is more than one ID, enter the lowest ID.
ex) In case of 0x1A(26), 0x1B(27), input 26
⑤ BIAS
Initialize all 6-axis force/torque data to zero. By eliminating installation and attachment factors, the desired force value can be measured.
⑥ Collect Data
Saves force/torque data logs. Please refer to the explanation regarding data storage on the page below.
⑦ STOP
Exit the program. Press both STOP buttons and the program ends in 3 seconds.
3.1 Save data log
1.
Save directory settings
Set the name of the file to save the data. The file will be saved in the folder where the executable program is located, and if there is no file with that name, it will be automatically created. Since the data is accumulated in the file, we recommend that you save it by specifying a new file each time you save it.
2.

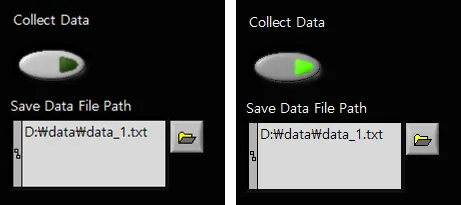

Collect data
Click the button below Collect Data to start saving. The button lights up when saving.
To end saving, press the button again. Data is stored cumulatively in files, so it is recommended that you specify a new file for each save.
3.

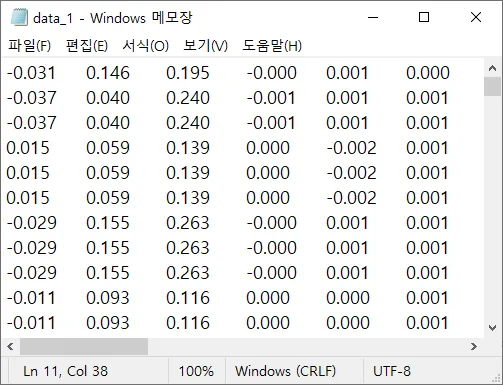

Check data log
You can check the saved force/torque data by opening the files in that directory. Data is stored in each column in the following order: Fx, Fy, Fz, Tx, Ty, and Tz.
